DIN Angle Valve with Cast Iron Body and Stainless Steel Components

Name: DIN Angle Valve with Cast Iron Body and Stainless Steel Components
Brand: World Wide Metric, Inc.
SKU: VAL-cb3c44
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-cb3c44

Durable PN 16 Cast Iron Angle Regular Valve with Stainless Steel components for reliable performance.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Cast Iron Angle Regular Valve is designed for durability and reliability. Constructed with a Cast Iron body and Stainless Steel components, including the stem, disc, and seat, this valve ensures long-lasting performance in demanding environments. With compliance to ISO5752 Series 8 for Face to Center measurement and DIN2501-PN16 for flanges, it meets stringent industry standards, suitable for both consumer and institutional applications.

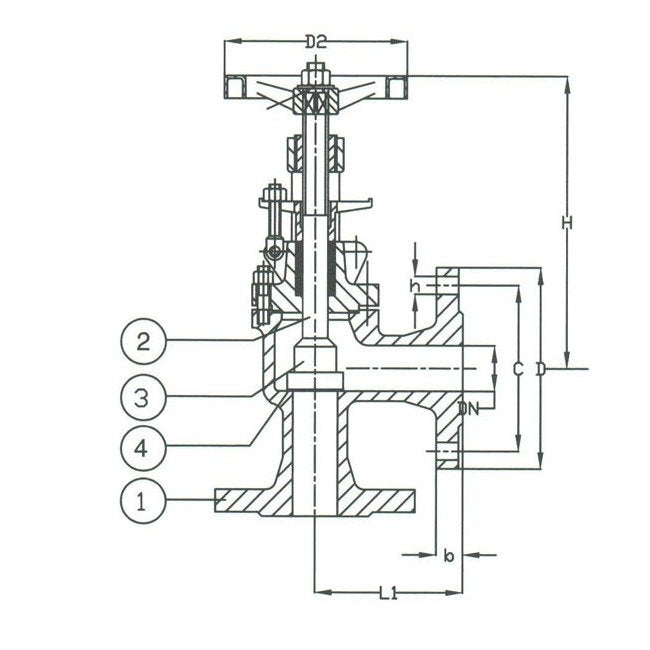

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

270 mm

Specifications Connection

Flanged Drilled

Specifications D

315 mm

Specifications D2

300 mm

Specifications Disc Material

Stainless Steel

Specifications H

470 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

250 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

175

Specifications Stem Material

Stainless Steel

Specifications T

24 mm

Specifications Weight

92 kg
