DIN Ball Valve PN40 Stainless Steel Body Valve - Size 020
DIN Ball Valve PN40 Stainless Steel Body Valve - Size 020
SKU:VAL-c40216
High-quality DIN Ball Valve PN40 with SS316 stainless steel body and Teflon seats for reliable performance in industrial settings.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DIN Ball Valve PN40 Stainless Steel Body Valve - Size 020
$89.99
Quantity: 1
Claim Your Seller Account
DIN Ball Valve PN40 Stainless Steel Body Valve - Size 020
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Ball Valve PN40 Stainless Steel Body Valve is expertly crafted with SS316 stainless steel components for superior durability and performance. With a full bore design and Teflon seats, this valve ensures smooth operation and leak-free sealing. Meeting stringent DIN standards, this valve is ideal for industrial applications requiring precision and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Lever
Specifications Body Material
Stainless Steel

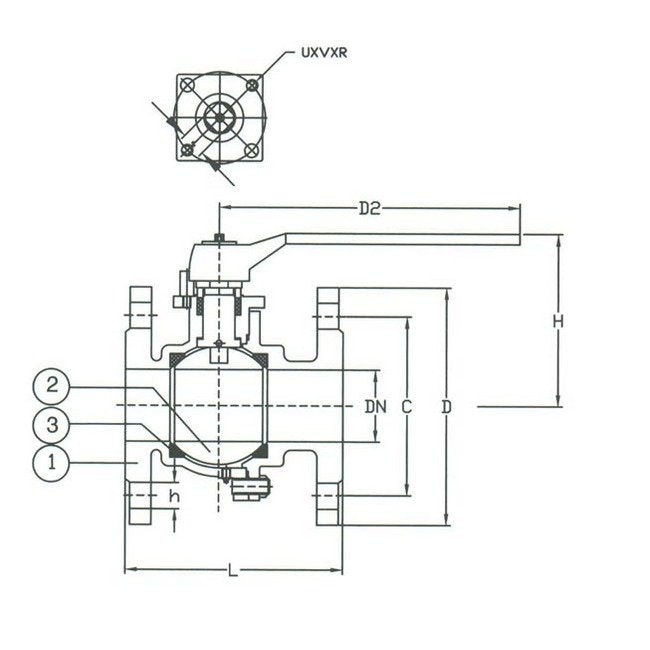

Specifications C
75 mm
Specifications D
105 mm
Specifications D2
130 mm
Specifications H
70 mm
Specifications Hydraulic Inspection Body
64
Specifications Hydraulic Inspection Seat
40
Specifications L
120 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
020
Specifications Stem Material
Stainless Steel
Specifications T
18 mm
Specifications Weight
3.5 kg
