DIN Bronze Gas/Water Valve Reducer, Size 015
DIN Bronze Gas/Water Valve Reducer, Size 015
SKU:VAL-3d96b1
Premium DIN Bronze Reducing Valve for gas, water, or air applications, ensuring reliability and performance. Compliant with DIN standards for quality assurance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DIN Bronze Gas/Water Valve Reducer, Size 015
$89.99
Quantity: 1
Claim Your Seller Account
DIN Bronze Gas/Water Valve Reducer, Size 015
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Reducing Valve is expertly crafted for air, gas, or water applications, featuring a durable bronze body and synthetic material disc & seat. With a maximum inlet pressure of 30/25 bar and a reducer pressure ranging from 1.5 to 12 bar, this valve ensures reliable performance. Meeting DIN standards 17052 & 1705, along with precise dimensions and quality materials, this valve is ideal for industrial settings requiring efficiency and durability.
Ready to Grow Without Cash Flow Constraints?

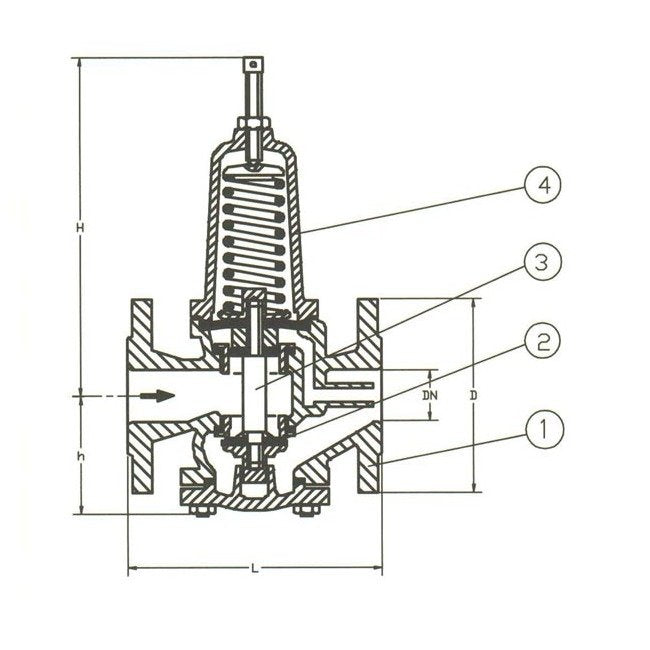

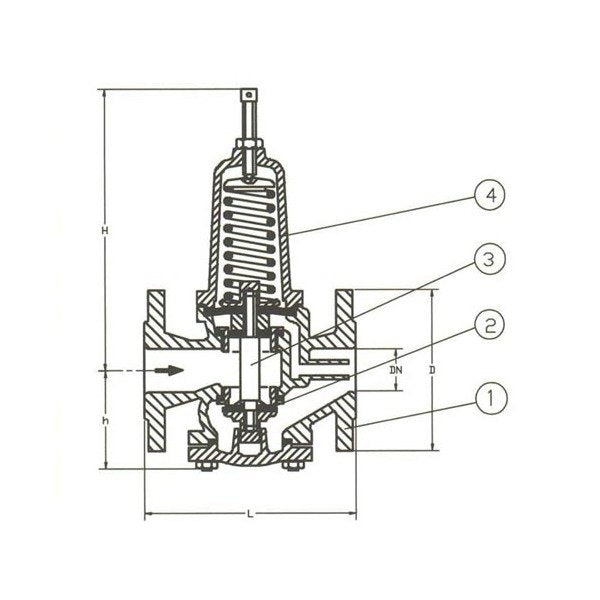

Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Bronze
Specifications C
65 mm
Specifications D
95 mm
Specifications Disc Material
Synthetic Material
Specifications H
103 mm
Specifications Hole Diameter
14 mm
Specifications L
130 mm
Specifications Max Inlet Pressure
30/25 bar
Specifications Number Of Holes
4
Specifications Reducer Pressure
1.5 - 12 bar
Specifications Seat Material
Synthetic Material
Specifications Size
015
Specifications Stem Material
Brass
Specifications Weight
6.4 kg
