DIN Bronze Globe Union Bonnet Valve - PN16

Name: DIN Bronze Globe Union Bonnet Valve - PN16
Brand: World Wide Metric, Inc.
SKU: VAL-d81d6c
Price: 179.99 USD
Availability: OutOfStock

SKU:VAL-d81d6c

Reliable DIN Bronze Globe Valve PN16 with bronze body, seat, and disc. Ideal for diverse applications.

$179.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

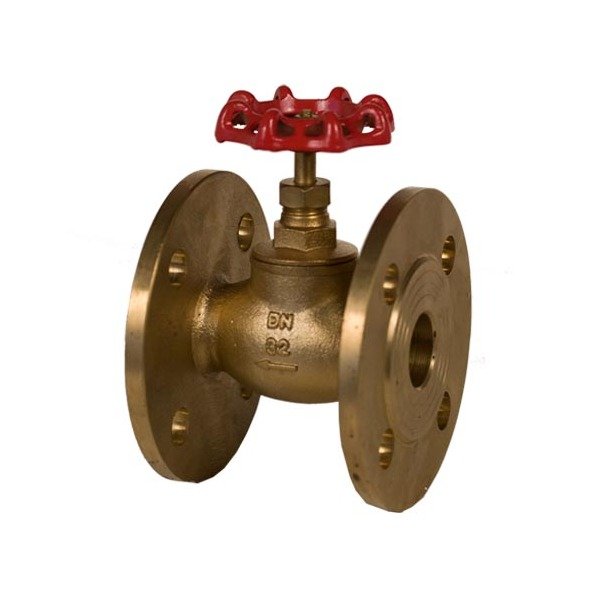

The DIN Bronze Globe Union Bonnet Valve PN16 is designed for durability and reliability. Constructed with bronze body, seat, and disc materials, along with a brass stem, this valve is compliant with DIN 17052/17053 standards. With flanges according to DIN2501-PN16, it ensures secure connections. The handwheel actuator provides ease of operation, making it suitable for various applications in both consumer and institutional settings.

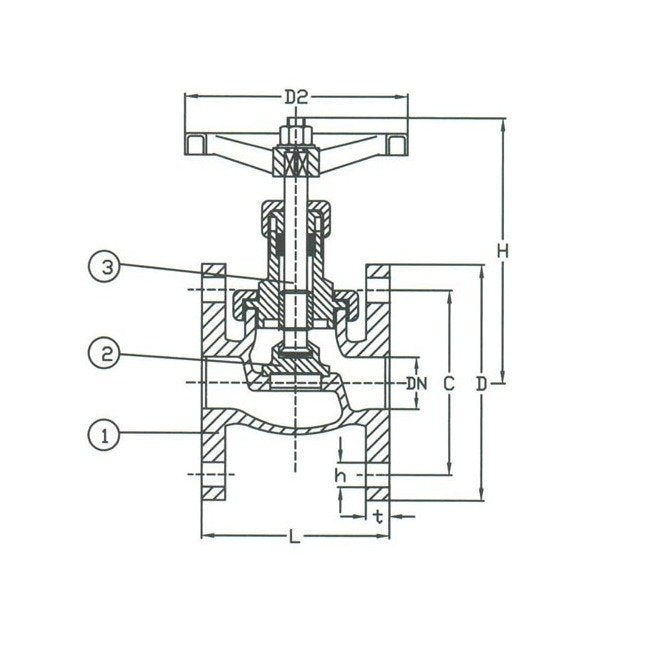

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

160 mm

Specifications Connection

Flanged Drilled

Specifications D

200 mm

Specifications D2

160 mm

Specifications Disc Material

Bronze

Specifications H

225 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

200 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

080

Specifications Stem Material

Brass

Specifications T

22 mm

Specifications Weight

16.0 kg
