DIN Bronze Globe Valve PN 16 - Short Pattern Valve, Brass Stem

Name: DIN Bronze Globe Valve PN 16 - Short Pattern Valve, Brass Stem
Brand: World Wide Metric, Inc.
SKU: VAL-2185f2
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-2185f2

Premium DIN Bronze Globe Valve PN 16 for reliable performance in institutional settings. DIN2501-PN16 flange compliant.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Bronze Globe Valve PN 16 is a high-quality valve designed for durability and reliability. Crafted with a gunmetal body, bronze seat, and disc, along with a sturdy brass stem, this valve ensures long-lasting performance under high pressure. With precise hydraulic inspections for both the body and seat, it guarantees efficient operation. The flanges adhere to DIN2501-PN16 standards, making it suitable for institutional environments requiring top-notch valves.

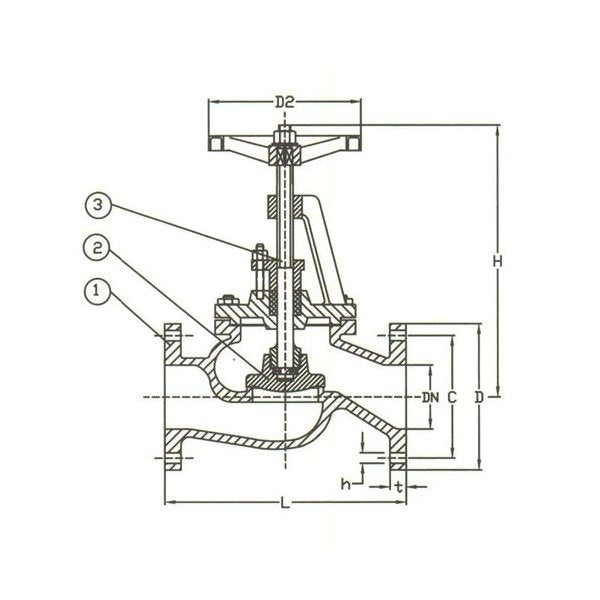

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

65 mm

Specifications Connection

Flanged Drilled

Specifications D

95 mm

Specifications D2

100 mm

Specifications Disc Material

Bronze

Specifications H

160 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

120 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

015

Specifications Stem Material

Brass

Specifications T

14 mm

Specifications Weight

4.0 kg
