DIN Bronze Wafer Disc Check Valve
DIN Bronze Wafer Disc Check Valve
SKU:VAL-34fd26
High-quality DIN Bronze Wafer Disc Check Valve for reliable flow control in diverse applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
DIN Bronze Wafer Disc Check Valve
$79.99
Quantity: 1
Claim Your Seller Account
DIN Bronze Wafer Disc Check Valve
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Bronze Wafer Disc Check Valve is a high-quality valve designed for durability and reliable performance. Crafted with a Bronze body and Stainless Steel components including the disc, seat, and stem, this valve ensures exceptional corrosion resistance and longevity. It features a sturdy Spring actuator for smooth operation and is designed to meet stringent DIN3202 K4 standards. Ideal for a wide range of applications requiring secure flow control.

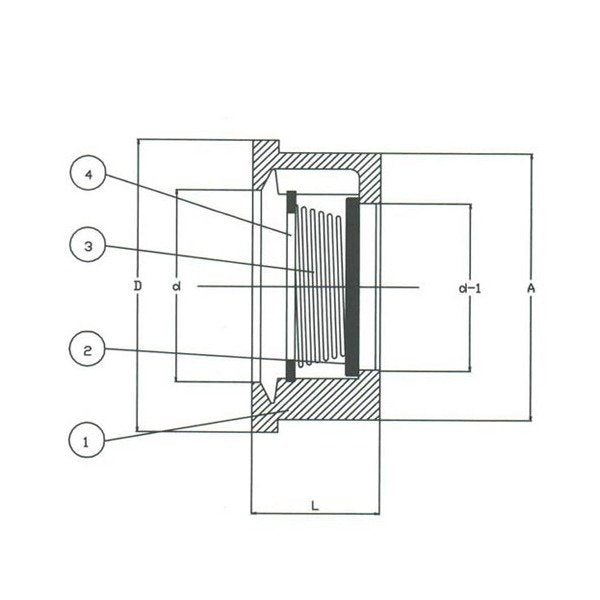

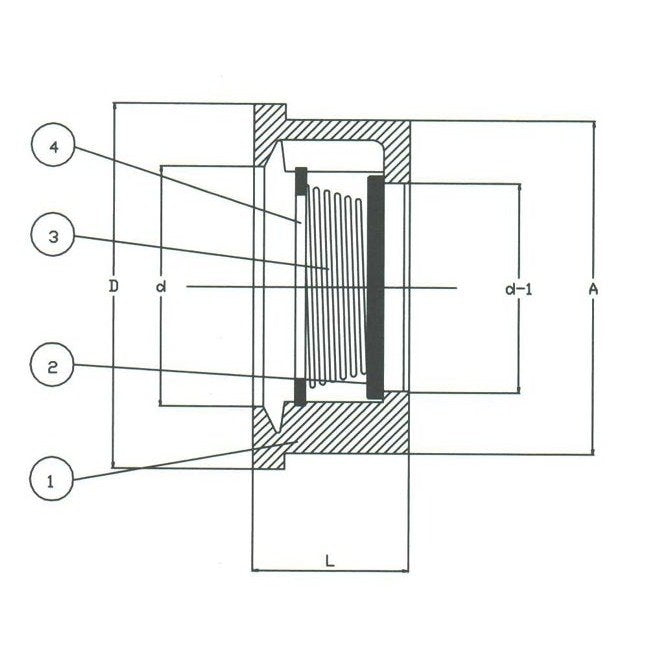

Product Specifications
Specifications A
55.0 mm
Specifications Actuators
Spring
Specifications Body Material
Bronze
Specifications D
73 mm
Specifications D1
24 mm
Specifications Disc Material
Stainless Steel
Specifications L
22.0 mm
Specifications Seat Material
Stainless Steel
Specifications Size
025
Specifications Stem Material
Stainless Steel
Specifications Weight
0.26 kg
