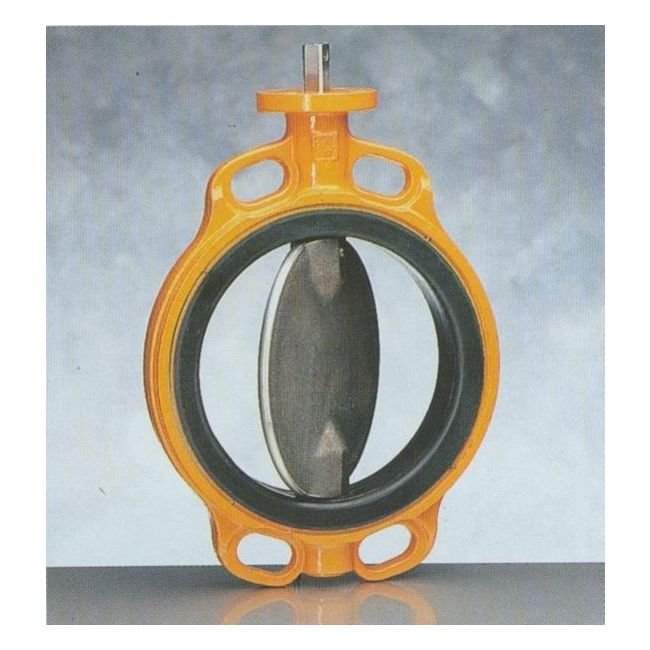

DIN Butterfly Valve, Cast Iron Semi Lug Wafer Type - DN200 (8")
DIN Butterfly Valve, Cast Iron Semi Lug Wafer Type - DN200 (8")
SKU:VAL-e5ba59
Reliable Series EVBS DN200 Cast Iron Butterfly Valve for industrial applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DIN Butterfly Valve, Cast Iron Semi Lug Wafer Type - DN200 (8")
$349.99
Quantity: 1
Claim Your Seller Account
DIN Butterfly Valve, Cast Iron Semi Lug Wafer Type - DN200 (8")
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series EVBS Bare Shafted Cast Iron, Semi Lug Wafer Type DIN Butterfly Valve is designed for precision performance in industrial applications. With a size of DN200 (8 inches) and PN10/16 pressure rating, this valve offers versatility and reliability. Constructed with high-quality materials including GG25 Cast Iron body and Stainless Steel shaft, it ensures durability and resistance to corrosion. The valve functions as both an isolating and regulating valve, making it ideal for various flow control needs. Meeting DIN standards and offering multiple type approvals, this valve is a dependable choice for critical systems.
Product Specifications
Specifications A
200 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | APSAD | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | UL | VdS | WRC
Specifications Body Material
Cast Iron
Specifications B Diameter
262 mm
Specifications C
60 mm
Specifications D
158 mm
Specifications E
204 mm
Specifications F
14 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
16 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R
44 mm
Specifications Shaft Material
Stainless Steel 1.4057
Specifications Size
DN200 - 8" | 200 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 6 bar
Specifications Weight
14.0 kg
Specifications X
191 mm
Specifications Y
70 mm
