DIN Butterfly Valve DN300, Double Flanged Ductile Iron

DIN Butterfly Valve DN300, Double Flanged Ductile Iron

VAL-518607

Rugged DIN Butterfly Valve DN300 for precise flow control in industrial settings.

$699.99
$699.99
Sale

Initiate Order

DIN Butterfly Valve DN300, Double Flanged Ductile Iron

DIN Butterfly Valve DN300, Double Flanged Ductile Iron

$699.99

Quantity: 1

Claim Your Seller Account

DIN Butterfly Valve DN300, Double Flanged Ductile Iron

DIN Butterfly Valve DN300, Double Flanged Ductile Iron

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Series EVFS Double Flanged Ductile Iron Butterfly Valve DN300 is a robust solution designed for both isolating and regulating fluid flow with precision. With a PN10 flange connection and stainless steel shaft, it ensures reliable performance under variable pressures. Built to DIN standards, this valve boasts a Nitrile Butadiene Rubber liner and a range of body material options, making it versatile and durable for industrial applications. Take control of your flow management with this rugged and compliant butterfly valve.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

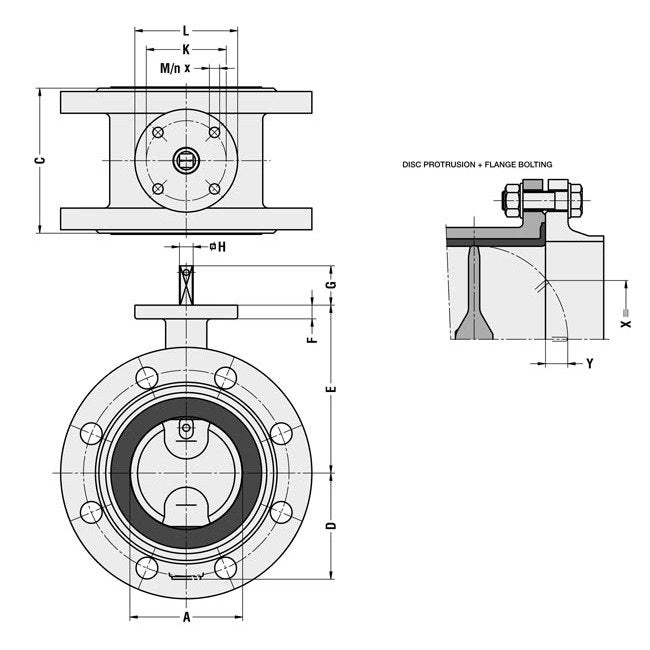

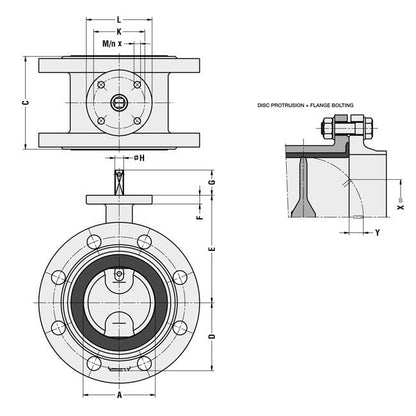

Product Specifications

Specifications A
300 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC
Specifications Body Material
Ductile Iron
Specifications C
178 mm
Specifications D
219 mm
Specifications E
270 mm
Specifications F
15 mm
Specifications Flange Connections
PN 10
Specifications G
45 mm
Specifications H Diameter
24 mm
Specifications Iso 5211
F10
Specifications K
102 mm
Specifications L
125 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
11 mm
Specifications N Number Of Holes
4
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN300 - 12" | 300 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
65.0 kg
Specifications X
242 mm
Specifications Y
61 mm
