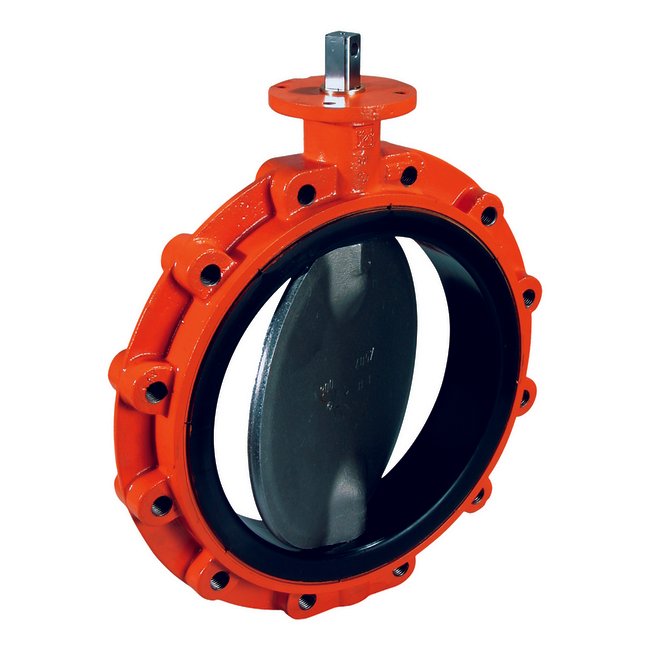

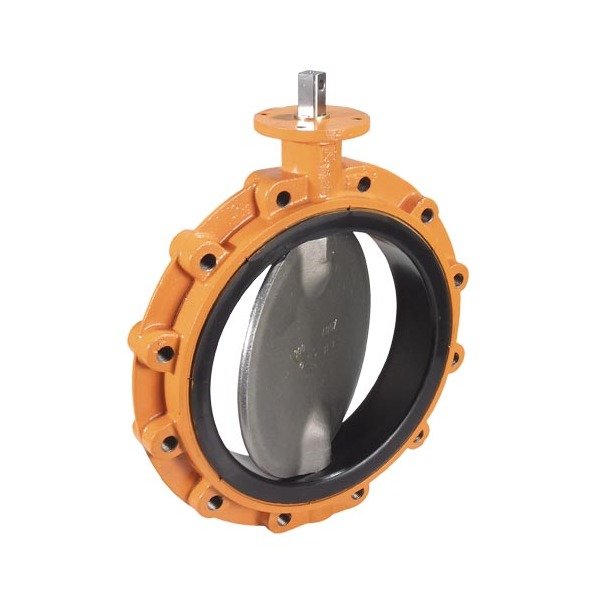

DIN Butterfly Valve, DN500, Gear Operated, Lug Type
DIN Butterfly Valve, DN500, Gear Operated, Lug Type
SKU:VAL-ad73a0
High-performance gear-operated butterfly valve for industrial applications. Size: DN500, PN16 rating. Durable construction for reliable operations.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DIN Butterfly Valve, DN500, Gear Operated, Lug Type
$899.99
Quantity: 1
Claim Your Seller Account
DIN Butterfly Valve, DN500, Gear Operated, Lug Type
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series EVTLS Gear Operated Ductile Iron Lug Type DIN Butterfly Valve is engineered for precision and durability. With a size of DN500 (20 inches) and PN16 rating, this valve ensures reliable performance in industrial applications. The valve offers versatile actuation possibilities with gear operation and meets various stringent standards ensuring quality and reliability. Crafted from high-quality materials including Ductile Iron body and Stainless Steel shaft, this valve is designed for long-term performance and efficiency.

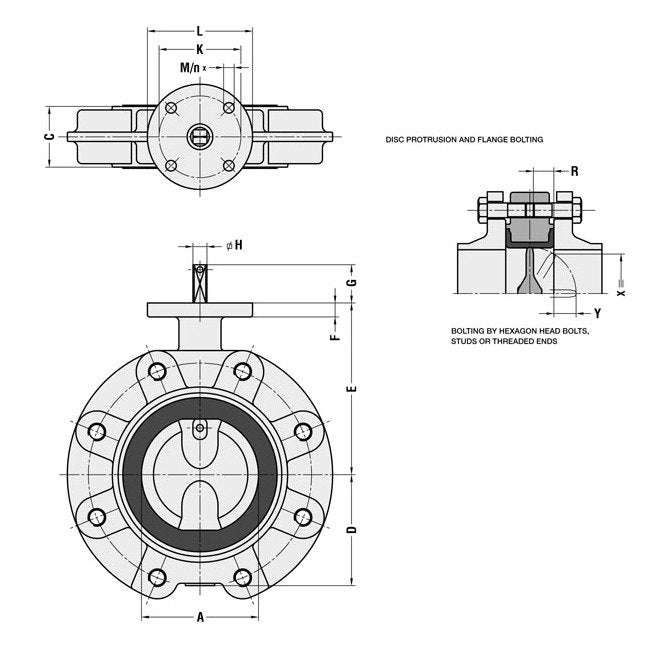

Product Specifications
Specifications A
486 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | NKK | RIN | RMRS | UL | WRC
Specifications Body Material
Ductile Iron
Specifications B Diameter
576 mm
Specifications C
127 mm
Specifications D
360 mm
Specifications E
413 mm
Specifications F
25 mm
Specifications Flange Connections
PN 16
Specifications G
50 mm
Specifications H Diameter
30 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications R Max At Cl 150
62 mm
Specifications R Max At Pn 10
62 mm
Specifications R Max At Pn 16
62 mm
Specifications R Max At Pn 6
62 mm
Specifications R Min At Cl 150
60 mm
Specifications R Min At Pn 10
54 mm
Specifications R Min At Pn 16
54 mm
Specifications R Min At Pn 6
48 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN500 - 20" | 500 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
130.0 kg
Specifications X
470 mm
Specifications Y
180 mm
