DIN Butterfly Valve - Series EVBS Lever Operated

Name: DIN Butterfly Valve - Series EVBS Lever Operated
Brand: World Wide Metric, Inc.
SKU: VAL-948155
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-948155

Reliable Series EVBS Lever Operated Butterfly Valve for DN50, PN16 pressure, ensuring exceptional performance and durability in industrial settings.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

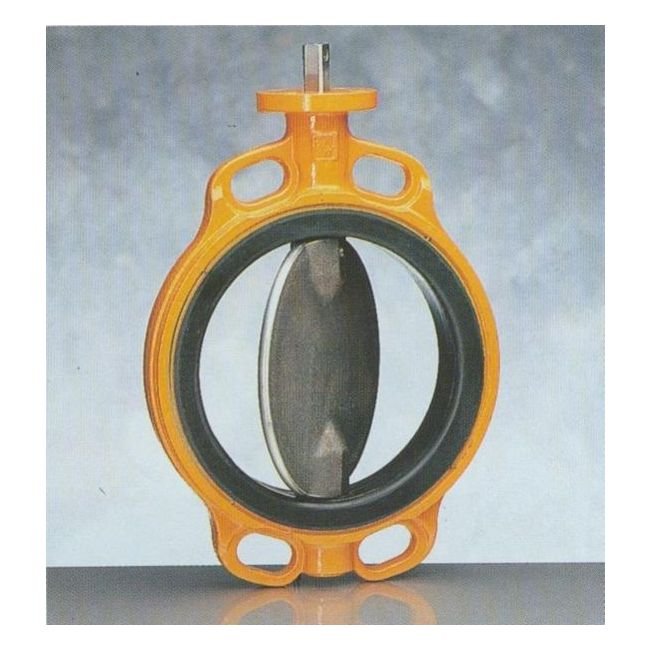

The Series EVBS Lever Operated Ductile Iron Semi Lug Wafer Type DIN Butterfly Valve is a versatile valve designed for DN50 with PN16 pressure rating. Featuring a robust construction with ductile iron body, this valve provides reliable isolation and regulation functions. With ISO 5211 mounting pad for easy actuation and multiple approvals including ABS, BV, DNV, and more, this valve ensures exceptional performance in various industrial applications. The EPDM liner and stainless steel components enhance durability, making it ideal for both consumer and institutional buyers.

Product Specifications

Specifications A

50 mm

Specifications Actuation Possibilities

Lever

Specifications Available Type Approvals

ABS | APSAD | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | UL | VdS | WRC

Specifications Body Material

Ductile Iron

Specifications B Diameter

100 mm

Specifications C

43 mm

Specifications D

63 mm

Specifications E

118 mm

Specifications F

12 mm

Specifications Flange Connections

PN 16

Specifications G

34 mm

Specifications H Diameter

10 mm

Specifications Iso 5211

F07

Specifications K

70 mm

Specifications L

90 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM)

Specifications M Diameter

9 mm

Specifications N Number Of Holes

Specifications R

30 mm

Specifications Shaft Material

Stainless Steel 1.4462

Specifications Size

DN50 - 2" | 50 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 6 bar

Specifications Weight

2.8 kg

Specifications X

25 mm

Specifications Y

4 mm
