DIN Butterfly Valve Series EVBS - Semi Lug, Cast Iron, Bare Shafted
DIN Butterfly Valve Series EVBS - Semi Lug, Cast Iron, Bare Shafted
SKU:VAL-b0ae1c
Series EVBS Butterfly Valve - DN150, PN16, Bare Shafted - Compliant with DIN Standards
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN Butterfly Valve Series EVBS - Semi Lug, Cast Iron, Bare Shafted
$299.99
Quantity: 1
Claim Your Seller Account
DIN Butterfly Valve Series EVBS - Semi Lug, Cast Iron, Bare Shafted
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

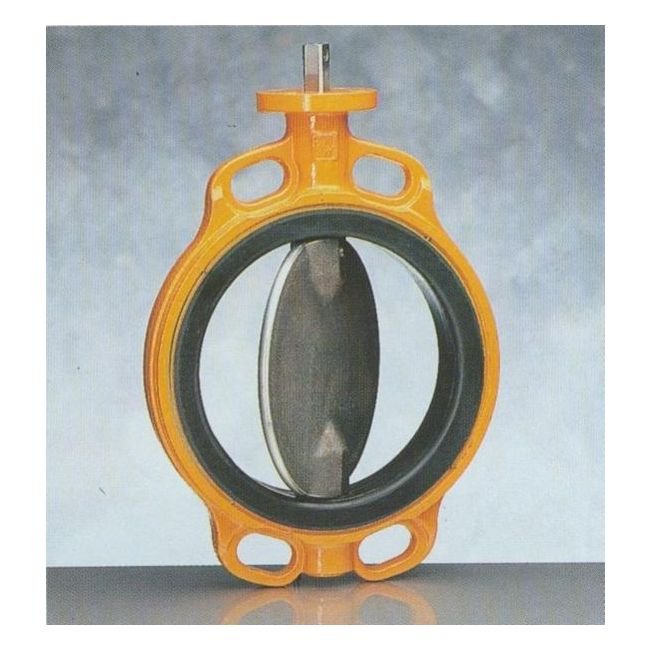

The Series EVBS Semi Lug Butterfly Valve is a high-quality, reliable valve suitable for various industrial applications. With a DN150 size and PN16 pressure rating, this valve offers exceptional performance and durability. Its bare shaft design, stainless steel shaft material, and Nitrile Butadiene Rubber (NBR) liner ensure smooth operation and tight shut-off. This valve is compliant with DIN standards and offers versatile actuation possibilities. Ideal for isolating and regulating flows, it meets the stringent requirements of institutional buyers seeking precision and reliability.
Product Specifications
Specifications A
150 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | APSAD | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | UL | VdS | WRC
Specifications Body Material
Cast Iron
Specifications B Diameter
210 mm
Specifications C
56 mm
Specifications D
133 mm
Specifications E
180 mm
Specifications F
14 mm
Specifications Flange Connections
PN 16
Specifications G
34 mm
Specifications H Diameter
16 mm
Specifications Iso 5211
F07
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications R
39 mm
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN150 - 6" | 150 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 6 bar
Specifications Weight
9.5 kg
Specifications X
140 mm
Specifications Y
47 mm
