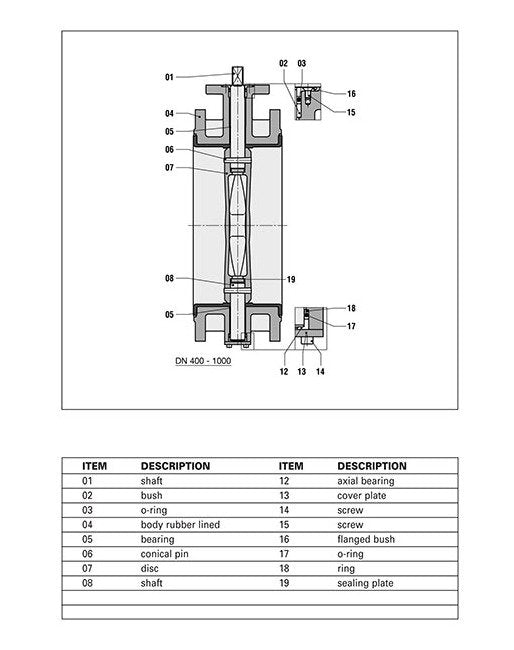

  • DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron Flanged Long Type - Image 3
  • DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron Flanged Long Type - Image 4
1 4
World Wide Metric, Inc. →

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron Flanged Long Type

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron Flanged Long Type

VAL-1c9231

Reliable Series EVFL DIN Butterfly Valve with PN16 rating and stainless steel shaft material - ABS, BV, DVGW approved.

$899.99
$899.99
Sale

Initiate Order

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron Flanged Long Type

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron Flanged Long Type

$899.99

Quantity: 1

Claim Your Seller Account

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron Flanged Long Type

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron Flanged Long Type

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Series EVFL Gear Operated Cast Iron Flanged Long Type DIN Butterfly Valve is a robust and reliable solution for industrial applications. With a size of DN600 (24") and a pressure rating of PN16, this valve excels in both isolating and regulating functions. Featuring flange connections, stainless steel shaft material, and EPDM liner material, it meets stringent standards for durability and performance. Approved by ABS, BV, DVGW, FM, GL, KIWA, LRS, RINA, RMRS, and WRC, this valve ensures top-notch quality and compliance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications A
586 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Cast Iron
Specifications C
390 mm
Specifications D
426 mm
Specifications E
510 mm
Specifications F
25 mm
Specifications Flange Connections
PN 16
Specifications G
50 mm
Specifications H Diameter
40 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications Pressure
PN 16
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN600 - 24" | 600 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
320.0 kg
Specifications X
438 mm
Specifications Y
98 mm
