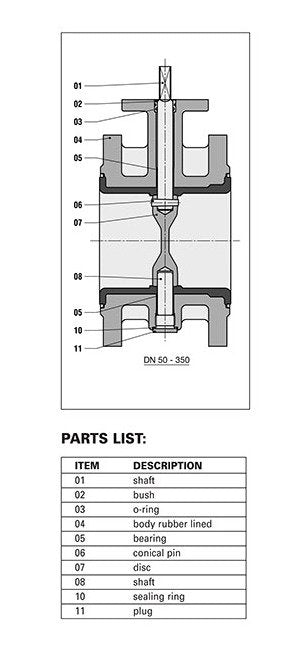

  • DIN Butterfly Valve, Series EVFL Gear Operated, Cast Iron, Flanged Long Type - Image 3
  • DIN Butterfly Valve, Series EVFL Gear Operated, Cast Iron, Flanged Long Type - Image 4
1 4
World Wide Metric, Inc. →

DIN Butterfly Valve, Series EVFL Gear Operated, Cast Iron, Flanged Long Type

DIN Butterfly Valve, Series EVFL Gear Operated, Cast Iron, Flanged Long Type

VAL-f23337

Series EVFL Gear Operated DIN Butterfly Valve with PN6, DN200 Size for precise industrial control

$799.99
$799.99
Sale

Initiate Order

DIN Butterfly Valve, Series EVFL Gear Operated, Cast Iron, Flanged Long Type

DIN Butterfly Valve, Series EVFL Gear Operated, Cast Iron, Flanged Long Type

$799.99

Quantity: 1

Claim Your Seller Account

DIN Butterfly Valve, Series EVFL Gear Operated, Cast Iron, Flanged Long Type

DIN Butterfly Valve, Series EVFL Gear Operated, Cast Iron, Flanged Long Type

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Series EVFL Double Flanged Long Valve is a robust and efficient butterfly valve designed for industrial applications. With a size of DN200 (8") and a pressure rating of PN6, this valve is suitable for isolating and regulating functions. It features bronze, cast iron, and ductile iron body material options, EPDM liner material, and stainless steel shaft material, ensuring durability and chemical resistance. The gear actuation mechanism provides precise control. Compliant with DIN standards and approved by ABS, BV, DVGW, and more, this valve meets stringent industry requirements.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications A
200 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Cast Iron
Specifications C
230 mm
Specifications D
158 mm
Specifications E
204 mm
Specifications F
14 mm
Specifications Flange Connections
PN 6
Specifications G
34 mm
Specifications H Diameter
16 mm
Specifications Iso 5211
F10
Specifications K
70 mm
Specifications L
90 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
9 mm
Specifications N Number Of Holes
4
Specifications Pressure
PN 6
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN200 - 8" | 200 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
45.0 kg
