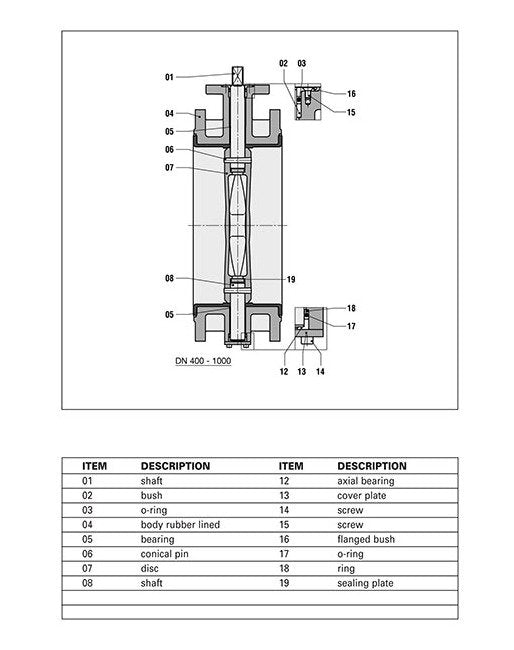

  • DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type - Image 3
  • DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type - Image 4
1 4
World Wide Metric, Inc. →

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type

VAL-42effd

Premium Series EVFL Gear Operated Butterfly Valve for industrial applications, DN400, PN6

$569.99
$569.99
Sale

Initiate Order

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type

$569.99

Quantity: 1

Claim Your Seller Account

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type

$569.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Series EVFL Gear Operated Cast Iron, Flanged Long Type DIN Butterfly Valve is a robust and reliable valve designed for industrial applications. With a size of DN400 (16") and PN6 pressure rating, this valve offers precise control and shut-off capabilities. Constructed from high-quality materials such as GG25 Cast Iron and Stainless Steel, it ensures durability and resistance to corrosion. The valve can function as both an isolating valve and a regulating valve, meeting the stringent standards of institutional buyers while providing efficient flow control.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications A
386 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Cast Iron
Specifications C
310 mm
Specifications D
308 mm
Specifications E
363 mm
Specifications F
25 mm
Specifications Flange Connections
PN 6
Specifications G
50 mm
Specifications H Diameter
30 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications Pressure
PN 6
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN400 - 16" | 400 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
165.0 kg
Specifications X
230 mm
Specifications Y
38 mm
