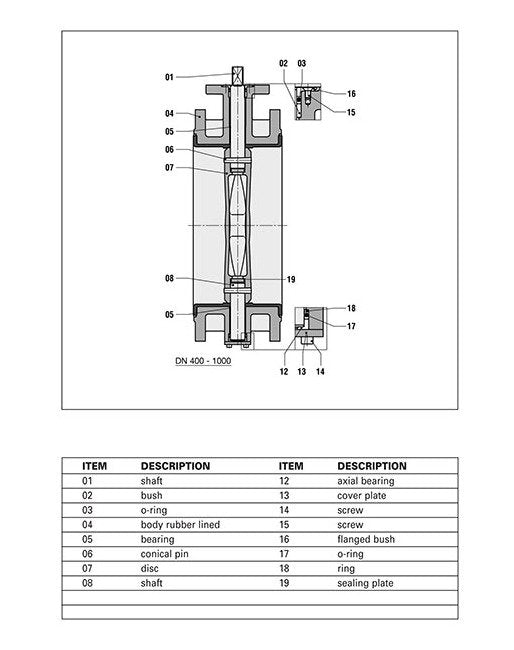

  • DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type - Image 3
  • DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type - Image 4
1 4
World Wide Metric, Inc. →

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type

VAL-825440

Series EVFL Gear Operated Cast Iron Butterfly Valve - Reliable, efficient, and compliant with industry standards.

$799.99
$799.99
Sale

Initiate Order

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type

$799.99

Quantity: 1

Claim Your Seller Account

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type

DIN Butterfly Valve - Series EVFL Gear Operated Cast Iron, Flanged Long Type

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Series EVFL Gear Operated Cast Iron Butterfly Valve is a sturdy and efficient solution for various industrial applications. With a DN400 - 16" (400 mm) size and PN 16 pressure rating, this valve offers reliable isolating and regulating functions. Constructed from high-quality materials like GG25 Cast Iron and Duplex Stainless Steel, it ensures durability and corrosion resistance. The valve is compliant with DIN standards and features actuation via gear operation, providing precise control. Approved by ABS, BV, DVGW, FM, GL, KIWA, LRS, RINA, RMRS, and WRC, it meets stringent industry certifications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications A
386 mm
Specifications Actuation Possibilities
Gear
Specifications Available Type Approvals
ABS | BV | DVGW | FM | GL | KIWA | LRS | RINA | RMRS | WRC
Specifications Body Material
Cast Iron
Specifications C
310 mm
Specifications D
308 mm
Specifications E
363 mm
Specifications F
25 mm
Specifications Flange Connections
PN 16
Specifications G
50 mm
Specifications H Diameter
30 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications Pressure
PN 16
Specifications Shaft Material
Stainless Steel 1.4462
Specifications Size
DN400 - 16" | 400 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
165.0 kg
Specifications X
230 mm
Specifications Y
38 mm
