DIN Cast Iron Angle Regular Valve PN 16

Name: DIN Cast Iron Angle Regular Valve PN 16
Brand: World Wide Metric, Inc.
SKU: VAL-7a520d
Price: 159.99 USD
Availability: OutOfStock

SKU:VAL-7a520d

Reliable DIN Cast Iron Angle Valve PN 16 for industrial applications, features Cast Iron body, Stainless Steel components, DIN2501-PN16 Flanges, and handwheel Actuator.

$159.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

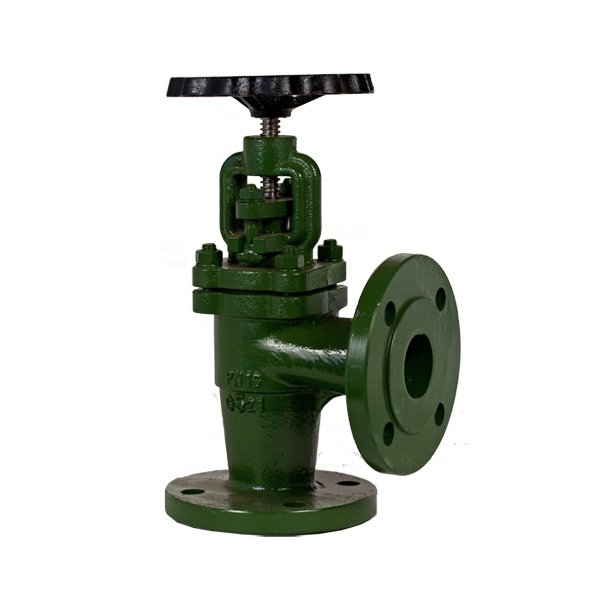

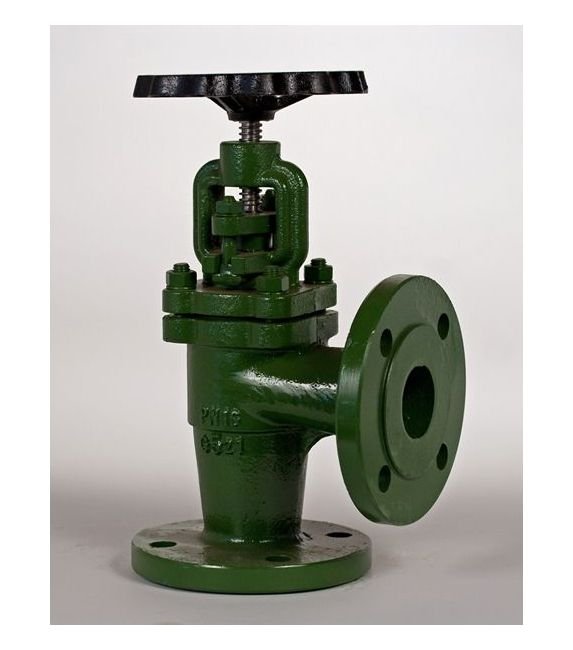

The DIN Cast Iron Angle Regular Valve PN 16 is a durable and reliable valve suitable for various industrial applications. Constructed with a Cast Iron body, Stainless Steel stem, disc, and seat, this valve ensures longevity and efficient performance. With Flanges according to DIN2501-PN16 standards, it offers secure connections and precise control. The handwheel Actuator allows for manual operation, making it versatile and easy to use. Meeting industry standards for quality and performance, this valve is an excellent choice for both consumer and institutional buyers.

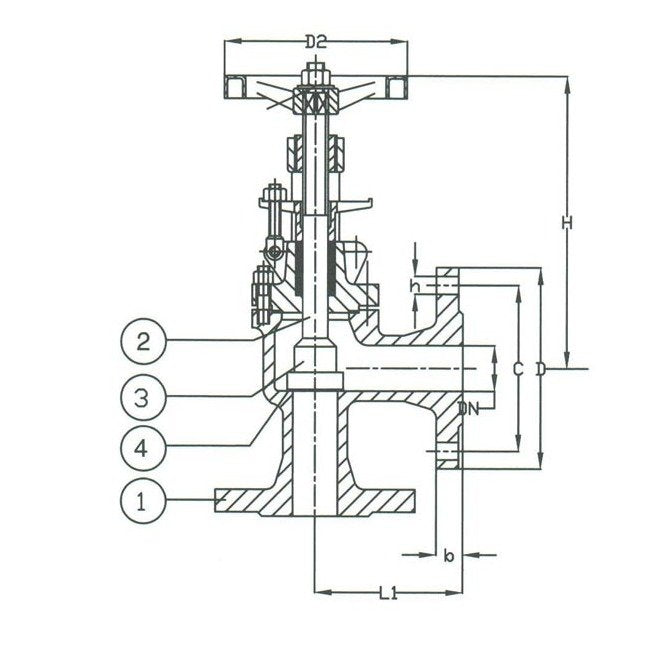

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

145 mm

Specifications Connection

Flanged Drilled

Specifications D

185 mm

Specifications D2

200 mm

Specifications Disc Material

Stainless Steel

Specifications H

260 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

145 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

065

Specifications Stem Material

Stainless Steel

Specifications T

18 mm

Specifications Weight

17.10 kg

DIN Cast Iron Angle Regular Valve PN 16
