DIN Cast Iron Angle SDNR Valve - PN16

Name: DIN Cast Iron Angle SDNR Valve - PN16
Brand: World Wide Metric, Inc.
SKU: VAL-d614bf
Price: 249.99 USD
Availability: OutOfStock

SKU:VAL-d614bf

High-quality DIN Cast Iron Angle Valve - PN16 for reliable performance in industrial applications.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Cast Iron Angle SDNR Valve - PN16 is a high-quality valve designed for reliable performance. Constructed with a Cast Iron body, Stainless Steel stem, disc, and seat, this valve ensures durability and corrosion resistance. With precise hydraulic inspections and compliance with ISO5752 and DIN2501 standards, it guarantees reliable operation in industrial settings. The Handwheel actuator and Flanged Drilled connection offer ease of use and installation, making it ideal for both consumer and institutional buyers.

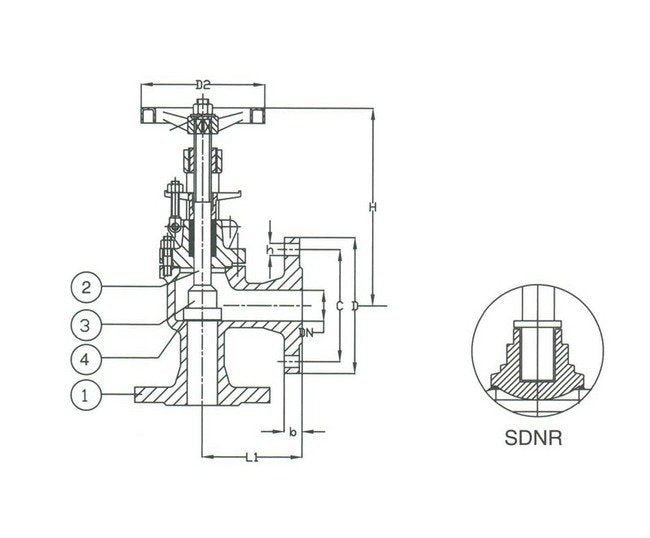

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

145 mm

Specifications Connection

Flanged Drilled

Specifications D

185 mm

Specifications D2

200 mm

Specifications Disc Material

Stainless Steel

Specifications H

260 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

145 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

065

Specifications Stem Material

Stainless Steel

Specifications T

18 mm

Specifications Weight

17.10 kg
