DIN Cast Iron Angle Valve PN16

Name: DIN Cast Iron Angle Valve PN16
Brand: World Wide Metric, Inc.
SKU: VAL-52ef20
Price: 99.99 USD
Availability: OutOfStock

SKU:VAL-52ef20

Durable DIN Cast Iron Angle Valve PN16 for industrial applications. Compliant with ISO & DIN standards.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Cast Iron Angle Valve PN16 is a robust valve designed for reliable performance in industrial settings. Constructed with a Cast Iron body, Stainless Steel stem, disc, and seat, this valve ensures durability and corrosion resistance. It features a Handwheel actuator for manual operation and Flanged Drilled connection for easy installation. Compliant with ISO5752 Series 8 standards and DIN2501-PN16 flange dimensions, this valve meets the stringent requirements of institutional procurement.

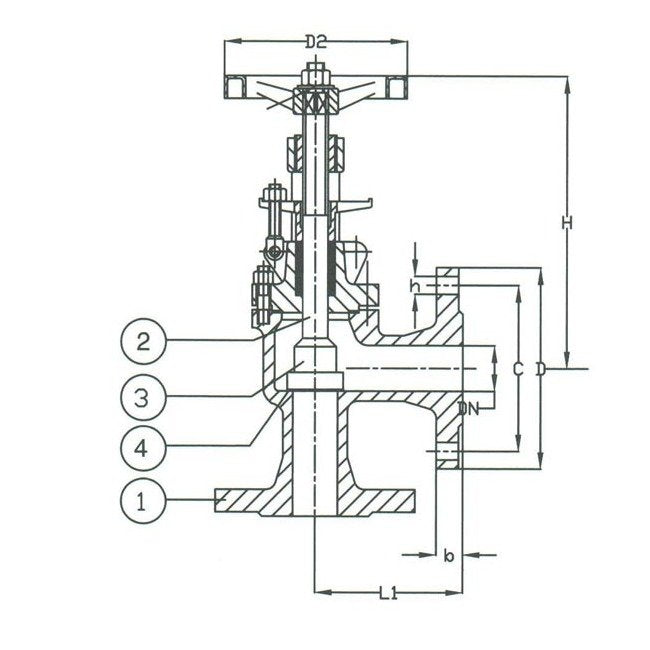

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

75 mm

Specifications Connection

Flanged Drilled

Specifications D

105 mm

Specifications D2

100 mm

Specifications Disc Material

Stainless Steel

Specifications H

135 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

95 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

020

Specifications Stem Material

Stainless Steel

Specifications T

16 mm

Specifications Weight

4.5 kg

DIN Cast Iron Angle Valve PN16
