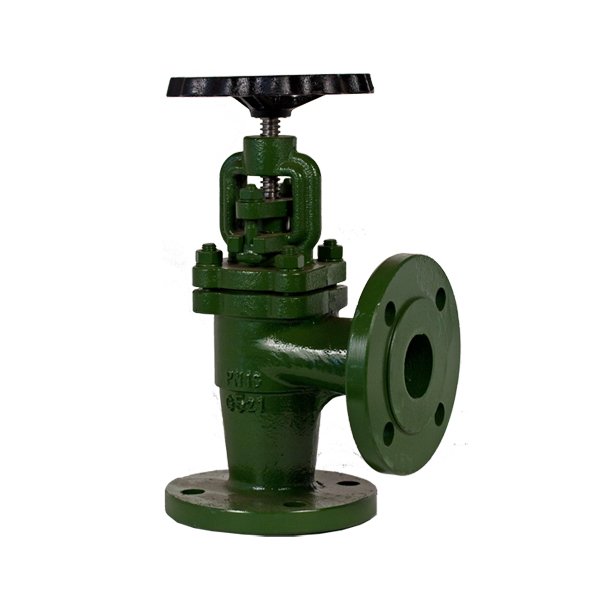

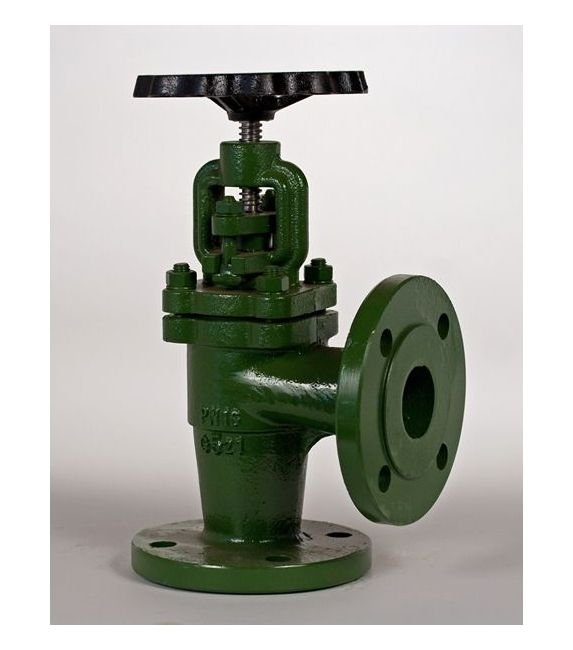

DIN Cast Iron Angle Valve PN16

Name: DIN Cast Iron Angle Valve PN16
Brand: World Wide Metric, Inc.
SKU: VAL-72140d
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-72140d

Durable DIN Cast Iron Angle Valve PN16 for industrial use. Cast Iron body, Stainless Steel construction, and corrosion-resistant design.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Cast Iron Angle Valve PN16 is a durable and reliable valve designed for industrial applications. Constructed with a Cast Iron body, Stainless Steel stem, disc, and seat, this valve ensures long-lasting performance. With hydraulic inspections meeting standards, flanges according to DIN2501-PN16, and a corrosion-resistant design, this valve offers excellent functionality and longevity.

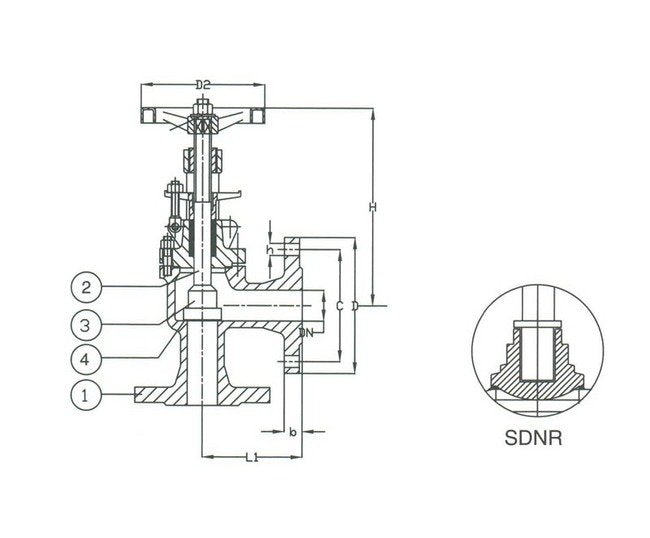

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

240 mm

Specifications Connection

Flanged Drilled

Specifications D

285 mm

Specifications D2

300 mm

Specifications Disc Material

Stainless Steel

Specifications H

385 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

225 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

150

Specifications Stem Material

Stainless Steel

Specifications T

22 mm

Specifications Weight

67 kg
