Series EVS Lever Operated Cast Iron Butterfly Valve, DN100, PN16 - Ideal for isolating and regulating fluid flows efficiently.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

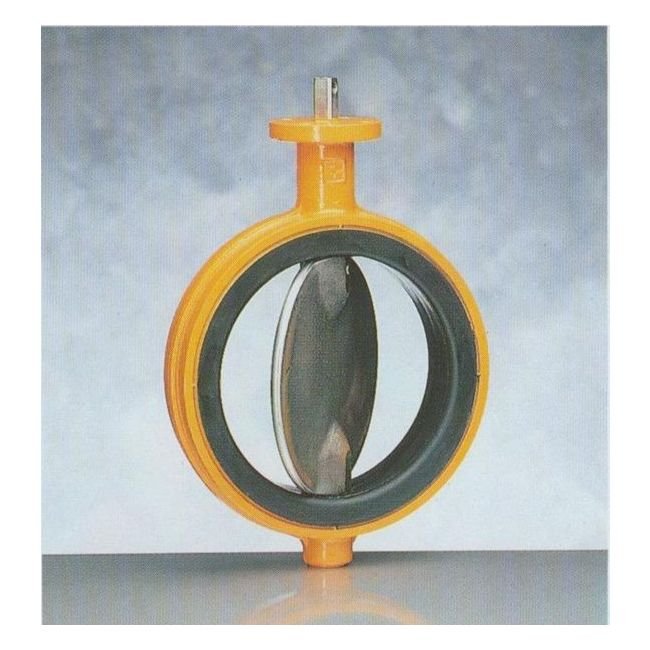

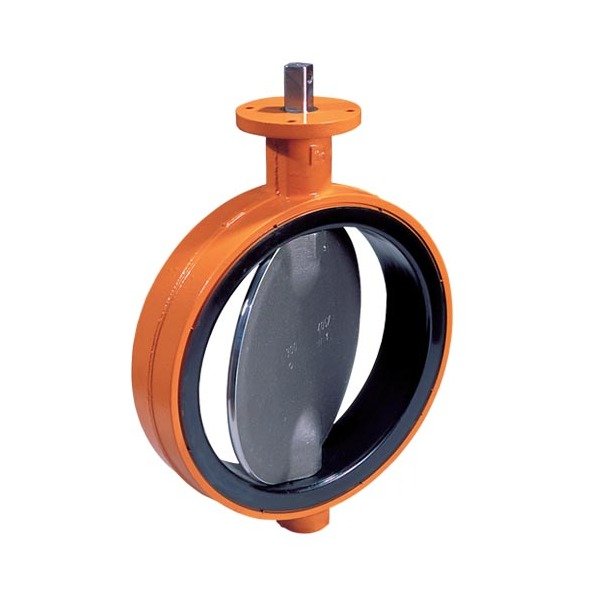

The Series EVS Lever Operated Cast Iron Wafer Butterfly Valve in DN100 size and PN16 rating is a versatile solution for fluid control. This valve functions as both an isolating and regulating valve, offering shut-off pressures of 10 bar to 16 bar. With a robust construction including GG25 Cast Iron body, Aluminum Bronze disc, and Stainless Steel shaft, this valve ensures durability and performance. Certified by ABS, DNV, UL, and more, it meets stringent industry standards for quality and reliability.

Product Specifications

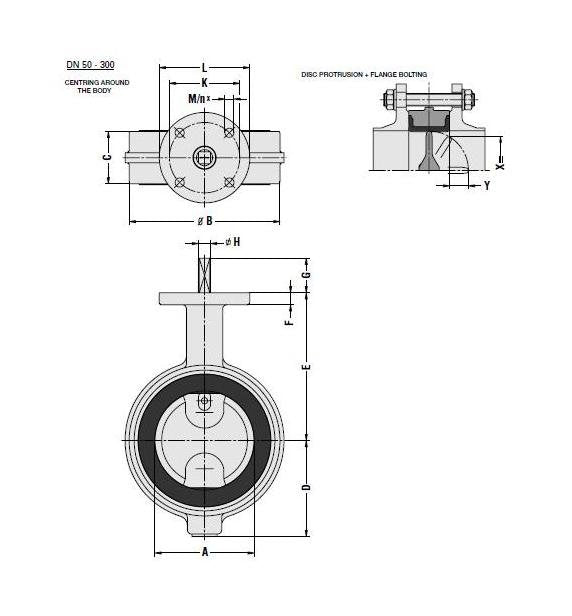

Specifications A

100 mm

Specifications Actuation Possibilities

Lever

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | JKR | KIWA | LRS | NKK | RIN | RMRS | SVGW | UL | VdS | WRC

Specifications Body Material

Cast Iron

Specifications B Diameter

150 mm

Specifications C

52 mm

Specifications D

98 mm

Specifications Disc Material

Aluminum Bronze

Specifications E

147 mm

Specifications F

12 mm

Specifications Flange Connections

PN 16

Specifications G

34 mm

Specifications H Diameter

12 mm

Specifications Iso 5211

F07

Specifications K

70 mm

Specifications L

90 mm

Specifications Liner Material

Nitrile Butadiene Rubber (NBR)

Specifications M Diameter

9 mm

Specifications N Number Of Holes

Specifications Shaft Material

Stainless Steel 1.4057

Specifications Size

DN100 - 4" | 100 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

4.5 kg

Specifications X

86 mm

Specifications Y

24 mm
