DIN Cast Iron PN 16 Y-Strainer with Stainless Steel Mesh
DIN Cast Iron PN 16 Y-Strainer with Stainless Steel Mesh
SKU:VAL-8abc36
High-quality DIN Cast Iron Y-Strainer for reliable fluid control in industrial applications.
Regular price
$229.99
Regular price
Sale price
$229.99
Unit price
per
Initiate Order
DIN Cast Iron PN 16 Y-Strainer with Stainless Steel Mesh
$229.99
Quantity: 1
Claim Your Seller Account
DIN Cast Iron PN 16 Y-Strainer with Stainless Steel Mesh
$229.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

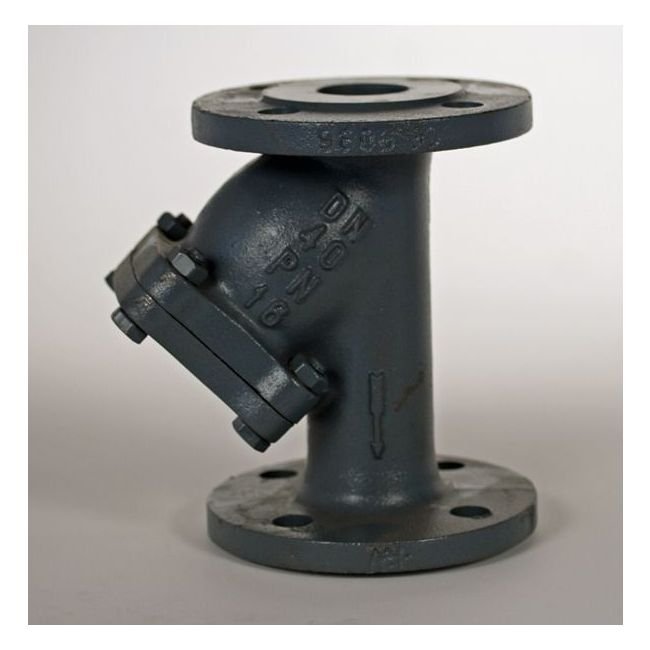

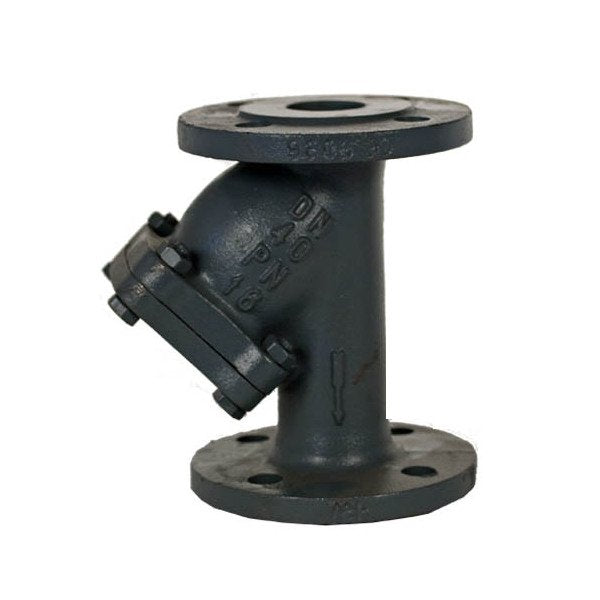

The DIN Cast Iron PN 16 Y-Strainer is a robust and durable solution for efficient fluid control. Constructed with GG25 cast iron and a stainless steel AISI 304 strainer, this valve ensures long-lasting performance and resistance to corrosion. With compliance to DIN standards for face to face and flanges, along with precise measurements and high-quality materials, this Y-strainer guarantees reliable filtration and exceptional flow control in industrial settings.

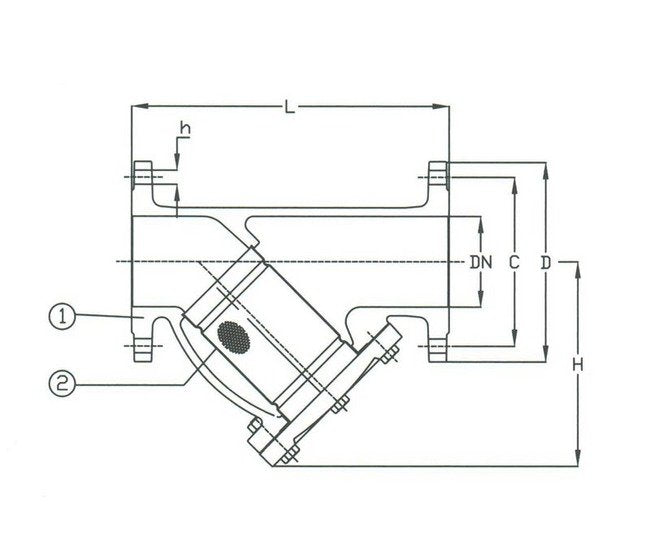

Product Specifications
Specifications Body Material
Cast Iron
Specifications C
210 mm
Specifications D
250 mm
Specifications H
260 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
400 mm
Specifications Number Of Holes
8
Specifications Size
125
Specifications T
22 mm
Specifications Weight
48.0 kg
