DIN Cast Iron Swing Check Valve - PN 16
DIN Cast Iron Swing Check Valve - PN 16
SKU:VAL-69fb6e
Reliable PN 16 Cast Iron Swing Check Valve for high-pressure applications, DIN standard compliant.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN Cast Iron Swing Check Valve - PN 16
$299.99
Quantity: 1
Claim Your Seller Account
DIN Cast Iron Swing Check Valve - PN 16
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Cast Iron Swing Check Valve - PN 16 is a robust valve designed for reliability in high-pressure applications. Constructed with GG253 cast iron body, brass disc, and hinge, and UNI 5035 bronze seat, this valve ensures durability and efficient flow control. Meeting DIN standards for face-to-face and flange dimensions, this valve offers seamless integration and compatibility for industrial settings. Its gravity-operated actuators provide smooth operation, making it ideal for critical hydraulic systems. With an IMPA/ISSA Code for easy identification and a flanged connection for secure installation, this valve is a trusted choice for rigorous industrial environments.

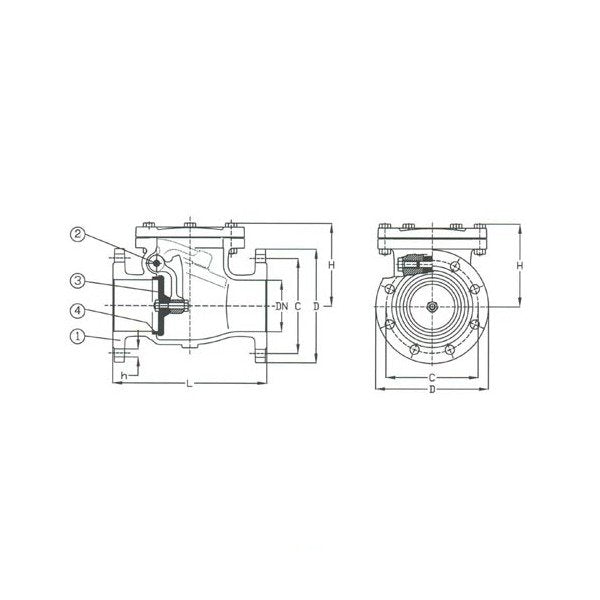

Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Cast Iron
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications Disc Material
Bronze
Specifications H
160 mm
Specifications Hydraulic Inspection Body
24
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
753575 | 755905 | 755915
Specifications L
300 mm
Specifications Number Of Holes
8
Specifications Seat Material
Bronze
Specifications Size
100
Specifications Stem Material
Brass
Specifications T
20 in
Specifications Weight
33 kg
