DIN Cast Iron Swing Check Valve PN16 - 200mm
DIN Cast Iron Swing Check Valve PN16 - 200mm
SKU:VAL-b6d53c
Durable DIN Cast Iron Swing Check Valve PN16 - Ideal for industrial applications
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
DIN Cast Iron Swing Check Valve PN16 - 200mm
$499.99
Quantity: 1
Claim Your Seller Account
DIN Cast Iron Swing Check Valve PN16 - 200mm
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Cast Iron Swing Check Valve PN16 is a durable and reliable valve suitable for a wide range of industrial applications. Constructed with high-quality materials including cast iron body, bronze seat, and disc, this valve ensures long-lasting performance. It meets DIN 3202-F6 face to face and DIN2501-PN16 flange standards, making it compliant with strict procurement requirements. The valve is designed for easy installation and maintenance, with gravity actuators for efficient operation.

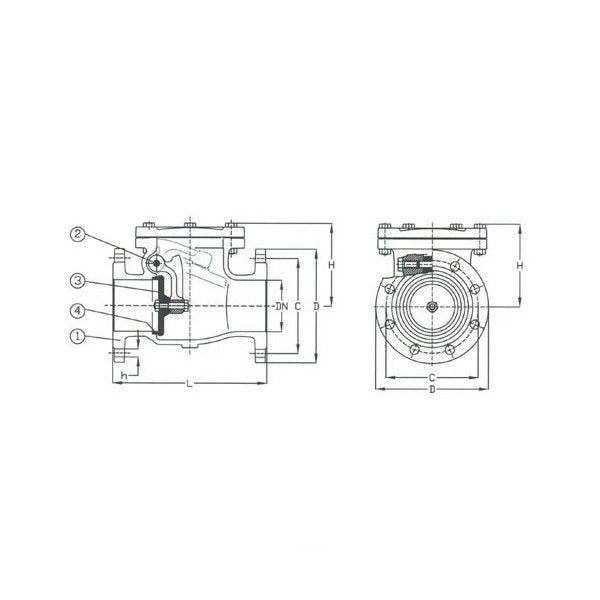

Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Cast Iron
Specifications C
295 mm
Specifications Connection
Flanged Drilled
Specifications D
340 mm
Specifications Disc Material
Bronze
Specifications H
220 mm
Specifications Hydraulic Inspection Body
24
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
753578 | 755908 | 755918
Specifications L
500 mm
Specifications Number Of Holes
12
Specifications Seat Material
Bronze
Specifications Size
200
Specifications Stem Material
Brass
Specifications T
24 in
Specifications Weight
155.0 kg
