DIN Cast Steel Angle Regular Valve PN16 - 200 Size

Name: DIN Cast Steel Angle Regular Valve PN16 - 200 Size
Brand: World Wide Metric, Inc.
SKU: VAL-97b8c3
Price: 499.99 USD
Availability: OutOfStock

SKU:VAL-97b8c3

High-quality DIN Cast Steel Angle Regular Valve PN16 for reliable industrial hydraulic applications.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Cast Steel Angle Regular Valve PN16 is a high-quality valve designed for industrial applications. Constructed with a Cast Steel body, Brass stem, and Stainless Steel disc and seat materials, this valve ensures durability and reliability. With a Handwheel actuator and Flanged Undrilled connection, it offers ease of operation and installation. Meeting ISO5752 Series 8 standards, this valve is ideal for use in various hydraulic systems, providing optimal performance and longevity.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Undrilled

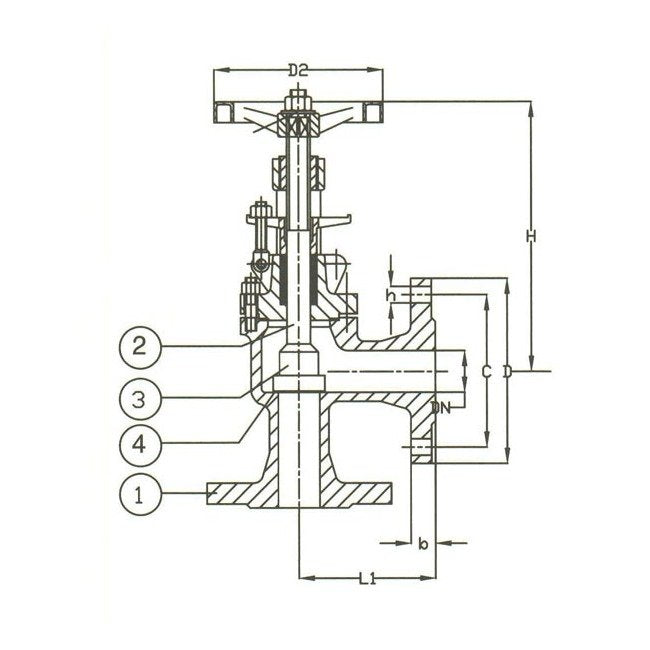

Specifications D

340 mm

Specifications D2

420 mm

Specifications Disc Material

Stainless Steel

Specifications H

500 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

275 mm

Specifications Seat Material

Brass

Specifications Size

200

Specifications Stem Material

Brass

Specifications Weight

126 kg
