DIN Cast Steel Angle Valve - PN 16 - Institutional Grade

Name: DIN Cast Steel Angle Valve - PN 16 - Institutional Grade
Brand: World Wide Metric, Inc.
SKU: VAL-c2827a
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-c2827a

Durable PN 16 Cast Steel Angle Valve with Brass/Stainless Steel components. ISO5752 Series 8 & DIN2501-PN16 compliant.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Cast Steel Angle Regular Valve is a high-quality industrial valve designed for durability and precision performance. Featuring a robust cast steel body with Brass or Stainless Steel components, this valve ensures optimal hydraulic control. The stainless steel disc and seat provide corrosion resistance, making it suitable for a wide range of applications. With ISO5752 Series 8 compliance and DIN2501-PN16 flanges, this valve meets rigorous industry standards for reliability and efficiency.

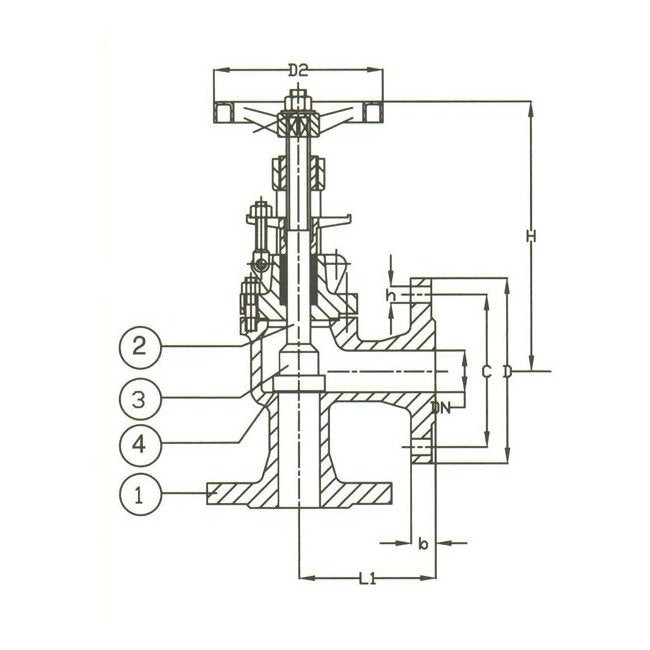

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

145 mm

Specifications Connection

Flanged Drilled

Specifications D

185 mm

Specifications D2

200 mm

Specifications Disc Material

Stainless Steel

Specifications H

260 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

145 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

065

Specifications Stem Material

Brass

Specifications T

18 mm

Specifications Weight

17.10 kg
