DIN Cast Steel Angle Valve - PN16 Series
DIN Cast Steel Angle Valve - PN16 Series
SKU:VAL-b8d7db
Reliable PN 16 Cast Steel Angle Valve - DIN2501-PN16, Ideal for Fluid Control
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN Cast Steel Angle Valve - PN16 Series
$299.99
Quantity: 1
Claim Your Seller Account
DIN Cast Steel Angle Valve - PN16 Series
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel Angle Regular Valve is a durable and reliable solution for fluid control applications. Constructed with high-quality materials including cast steel body, stainless steel seat and disc, and brass or stainless steel stem, this valve ensures long-term performance. With Flanges according to DIN2501-PN16 standards, it offers precise control and easy installation. The handwheel actuators allow manual operation, while meeting industry standards like ISO5752 Series 8. Ideal for industrial, commercial, and institutional settings.

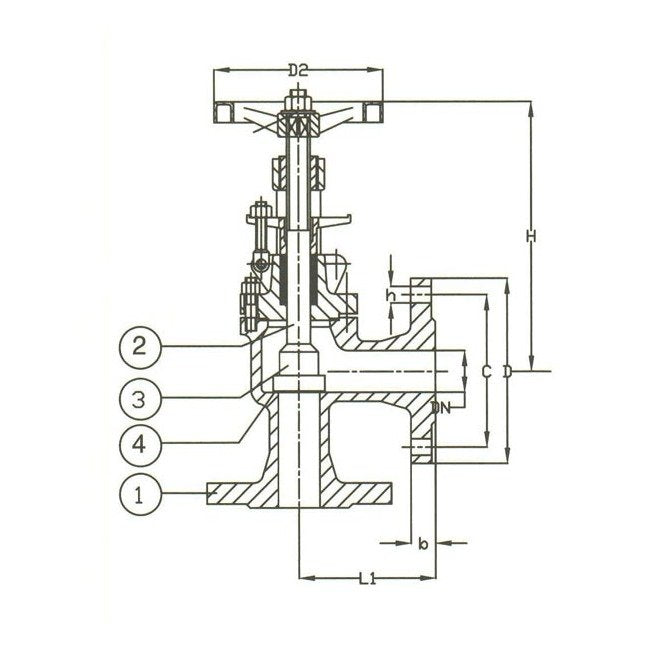

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications D2
225 mm
Specifications Disc Material
Stainless Steel
Specifications H
325 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
753474 | 755317
Specifications L1
175 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications T
20 mm
Specifications Weight
32.0 kg
