DIN Cast Steel Angle Valve PN40
DIN Cast Steel Angle Valve PN40
SKU:VAL-e80d44
Durable and reliable DIN Cast Steel Angle Valve PN40 for industrial applications needing precision flow control.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
DIN Cast Steel Angle Valve PN40
$499.99
Quantity: 1
Claim Your Seller Account
DIN Cast Steel Angle Valve PN40
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Cast Steel Angle Valve PN40 is designed for industrial applications requiring reliable performance. Constructed with durable materials including Cast Steel body, Stainless Steel seat, disc, and stem, this valve ensures long-lasting functionality. With a size of 175 and compliance with DIN2501-PN40 flange standards, it offers efficient hydraulic inspection and operation. The Handwheel actuator allows for manual control, making it suitable for various industrial settings where precision flow control is essential.

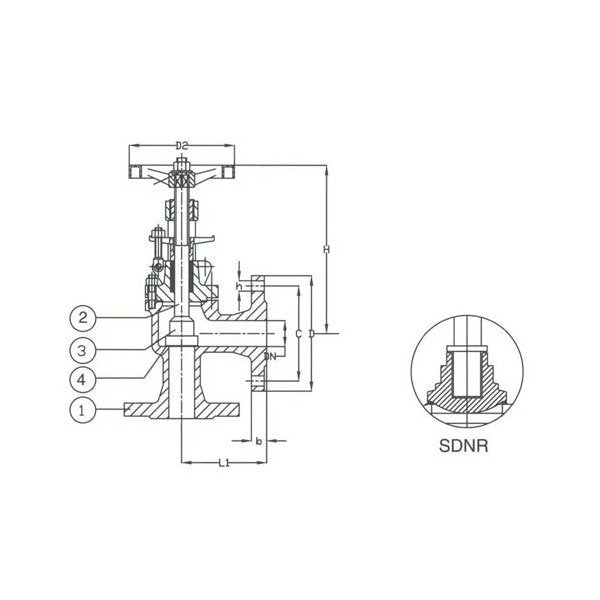

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
295 mm
Specifications Connection
Flanged Drilled
Specifications D
350 mm
Specifications D2
420 mm
Specifications Disc Material
Stainless Steel
Specifications H
470 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
250 mm
Specifications Number Of Holes
12
Specifications Seat Material
Stainless Steel
Specifications Size
175
Specifications Stem Material
Stainless Steel
Specifications T
32 mm
Specifications Weight
123 kg
