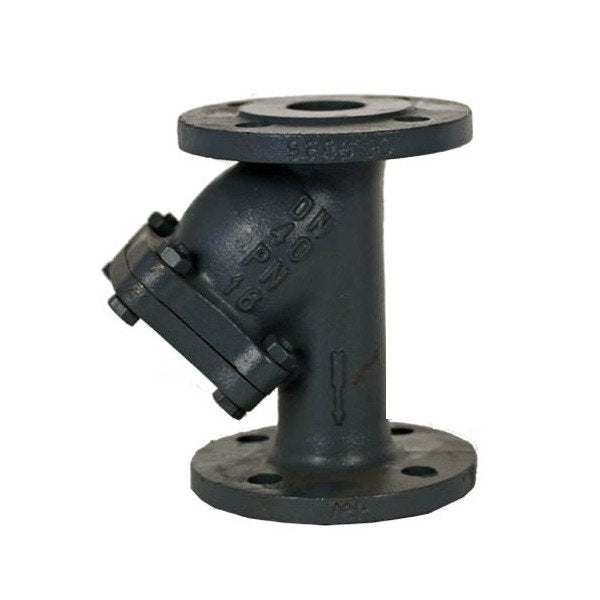

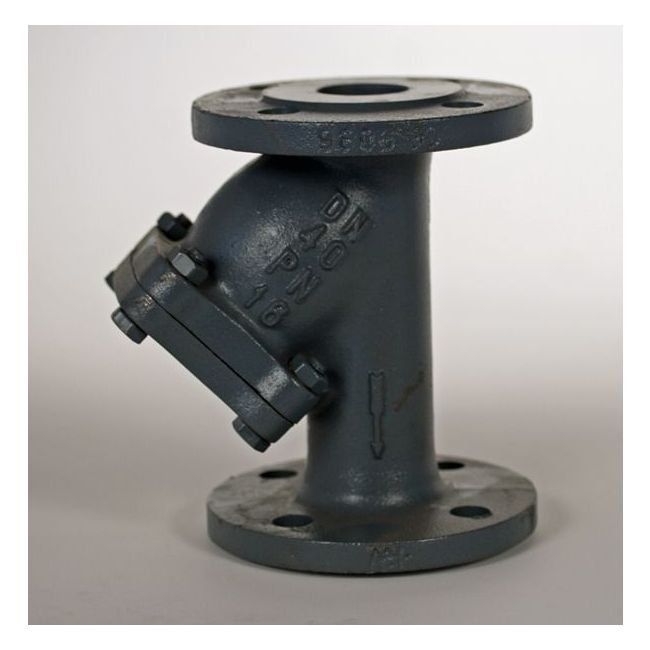

DIN Cast Steel PN 40 Y-Strainers
DIN Cast Steel PN 40 Y-Strainers
SKU:VAL-b9d64f
Premium PN 40 Y-Strainers with Cast Steel body, AISI 304 Stainless Steel strainer, and DIN standard compliance.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
DIN Cast Steel PN 40 Y-Strainers
$249.99
Quantity: 1
Claim Your Seller Account
DIN Cast Steel PN 40 Y-Strainers
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Cast Steel PN 40 Y-Strainers are engineered for durability and efficiency. Constructed with Cast Steel body and AISI 304 Stainless Steel strainer, these Y-Strainers offer optimal performance. Compliant with DIN standards, featuring a Face to Face according to DIN 3202-F1 and Flanges according to DIN2501-PN16, these valves ensure reliable operation in industrial settings. With precise dimensions and a robust build, these strainers guarantee long-term functionality and easy maintenance.

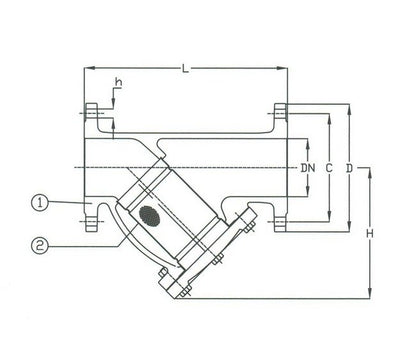

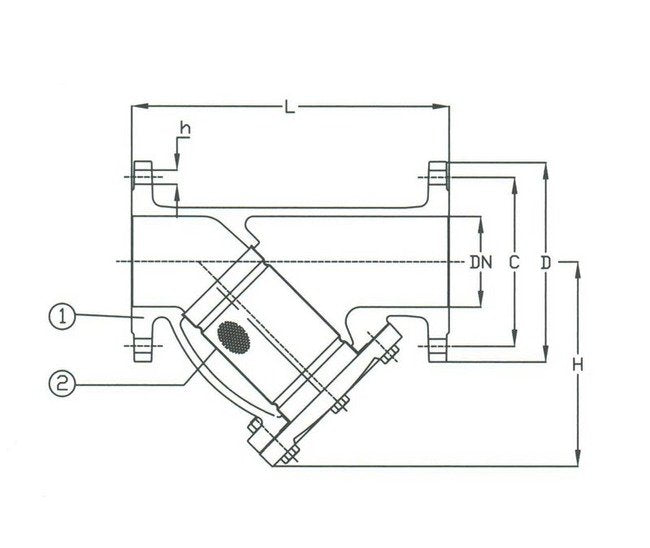

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
190 mm
Specifications Connection
Flanged Drilled
Specifications D
235 mm
Specifications H
220 mm
Specifications Hydraulic Inspection Body
64
Specifications Hydraulic Inspection Seat
40
Specifications L
350 mm
Specifications Number Of Holes
8
Specifications Size
100
Specifications T
24 mm
Specifications Weight
35 kg
