DIN Cast Steel PN16 Y-Strainer with Stainless Steel Filter, Size 050
DIN Cast Steel PN16 Y-Strainer with Stainless Steel Filter, Size 050
SKU:VAL-a1da5e
Durable DIN Cast Steel PN16 Y-Strainer with AISI 304 Stainless Steel Strainer for reliable filtration in industrial applications.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
DIN Cast Steel PN16 Y-Strainer with Stainless Steel Filter, Size 050
$159.99
Quantity: 1
Claim Your Seller Account
DIN Cast Steel PN16 Y-Strainer with Stainless Steel Filter, Size 050
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

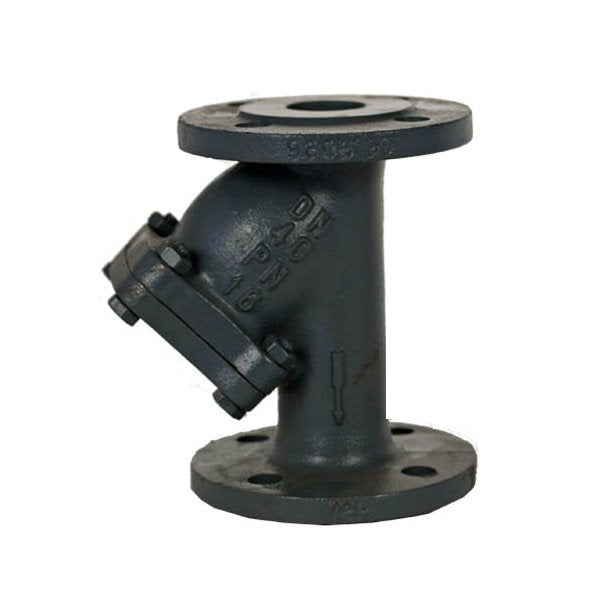

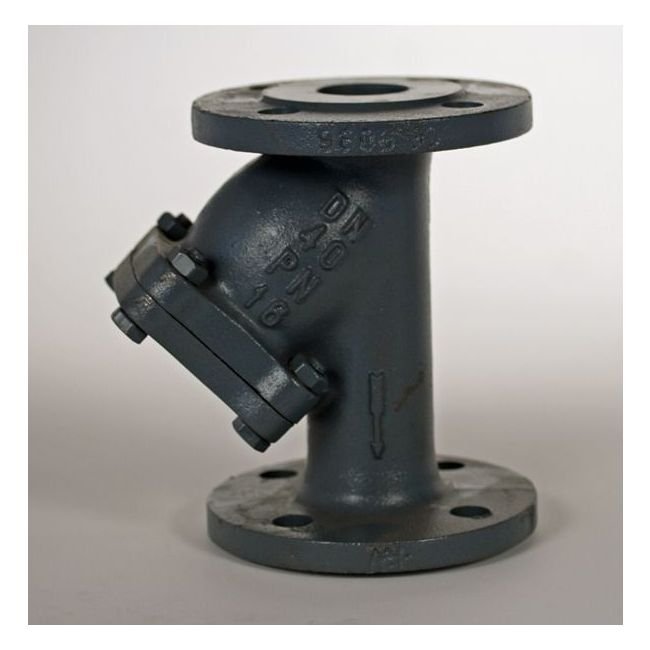

The DIN Cast Steel PN16 Y-Strainer provides robust filtration with a stainless steel AISI 304 strainer. Featuring a durable cast steel body, this Y-strainer meets DIN standards for face-to-face dimensions and flanges (DIN 3202-F1 and DIN 2501-PN16). With a compact design and hydraulic inspections ratings of 25 for the body and 16 for the seat, this strainer ensures reliable performance in industrial settings. Ideal for applications requiring efficient filtration and reliable operation.

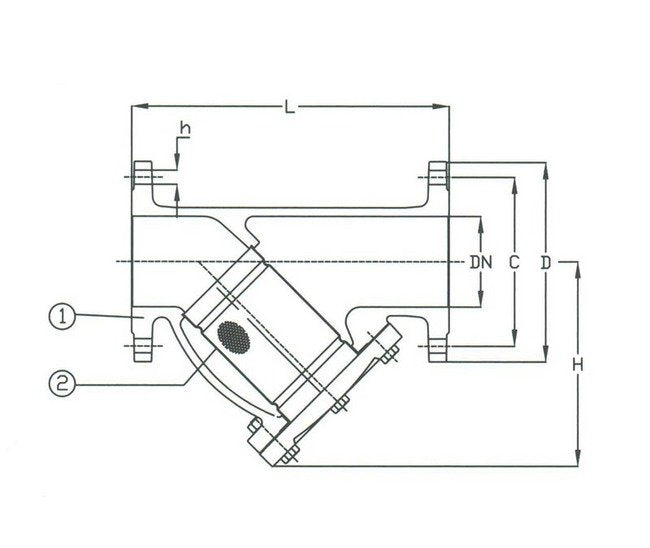

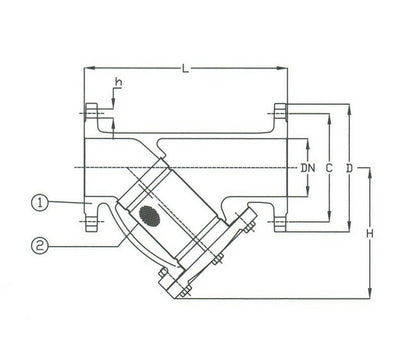

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
125 mm
Specifications D
165 mm
Specifications H
120 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
230 mm
Specifications Number Of Holes
4
Specifications Size
050
Specifications T
18 mm
Specifications Weight
13.0 kg
