DIN Cast Steel Spring Loaded Angle Valve - PN16

Name: DIN Cast Steel Spring Loaded Angle Valve - PN16
Brand: World Wide Metric, Inc.
SKU: VAL-fef6d4
Price: 199.99 USD
Availability: OutOfStock

SKU:VAL-fef6d4

Durable DIN Cast Steel Spring Loaded Angle Valve for precise fluid control in institutional applications.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Cast Steel Spring Loaded Angle Valve is a robust and reliable solution designed for precise fluid control. Constructed with high-quality materials including Cast Steel body, Stainless Steel disc, and stem, this valve ensures durability and optimal performance. Featuring flanges according to DIN2501-PN16 standards, it offers secure connections suitable for institutional applications. The spring-loaded actuators provide efficient operation, making it ideal for a wide range of industrial settings. With a brass seat material ensuring a tight seal, this valve guarantees leakage-free performance.

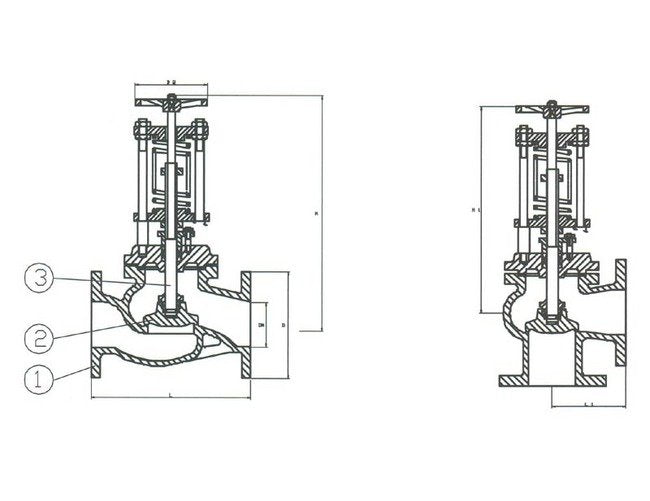

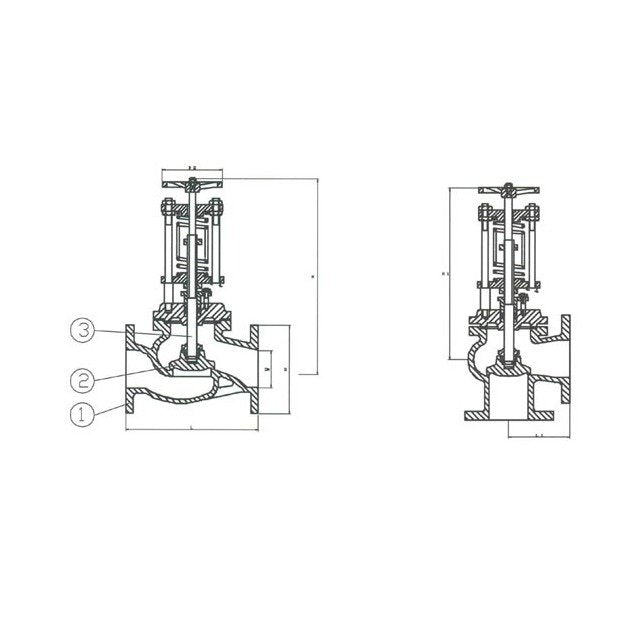

Product Specifications

Specifications Actuators

Spring

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

Specifications D

140 mm

Specifications D2

100 mm

Specifications Disc Material

Stainless Steel

Specifications H1

340 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

105.0 mm

Specifications Seat Material

Brass

Specifications Size

032

Specifications Stem Material

Brass

Specifications Weight

11.0 kg

DIN Cast Steel Spring Loaded Angle Valve - PN16
