DIN Cast Steel Storm Vertical Pattern Valve - PN10

Name: DIN Cast Steel Storm Vertical Pattern Valve - PN10
Brand: World Wide Metric, Inc.
SKU: VAL-250563
Price: 349.99 USD
Availability: OutOfStock

SKU:VAL-250563

Durable DIN Cast Steel Valve - Reliable Performance, DIN Standards Compliant

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Cast Steel Storm Vertical Pattern Valve - PN10 is a robust and reliable solution for fluid control applications. Constructed with a cast steel body, bronze disc, and brass stem, this valve ensures durability and efficient operation. The NBR disc gasket provides a secure seal, while the flanged drilled connection simplifies installation. Designed to meet stringent DIN standards, this valve offers dependable performance in industrial settings.

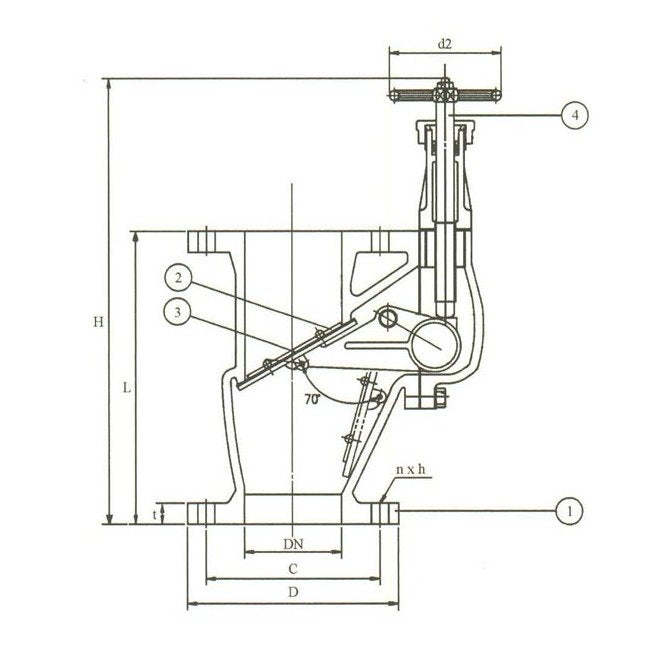

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

160 mm

Specifications Connection

Flanged Drilled

Specifications D

200 mm

Specifications D2

100 mm

Specifications Disc Material

Bronze

Specifications H

450 mm

Specifications Hydraulic Inspection Body

5.1

Specifications Hydraulic Inspection Seat

2.0

Specifications Impaissa Code

754273 | 754279

Specifications L

260 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

080

Specifications Stem Material

Brass

Specifications T

20 mm

Specifications Weight

32.4 kg

DIN Cast Steel Storm Vertical Pattern Valve - PN10
