DIN Cast Steel Y-Strainer PN 40

Name: DIN Cast Steel Y-Strainer PN 40
Brand: World Wide Metric, Inc.
SKU: VAL-67ec3d
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-67ec3d

Durable DIN Cast Steel Y-Strainer PN 40 for precise fluid control. Compliant with DIN standards. Ideal for industrial applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

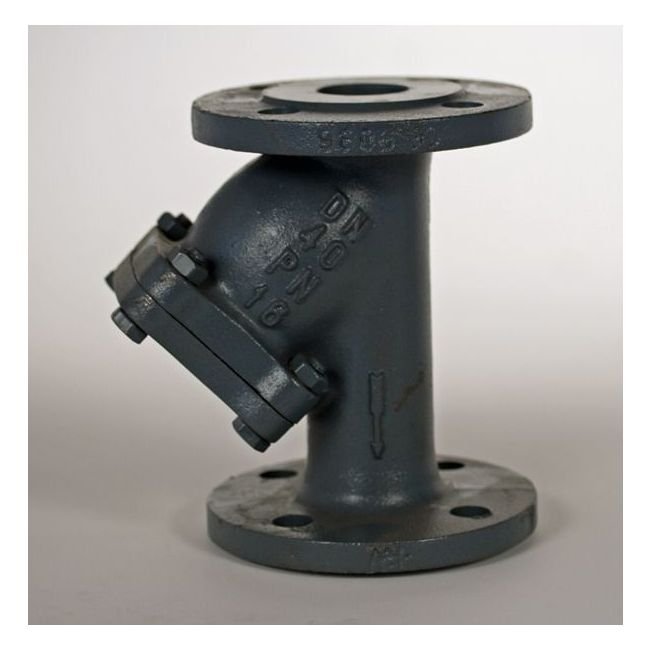

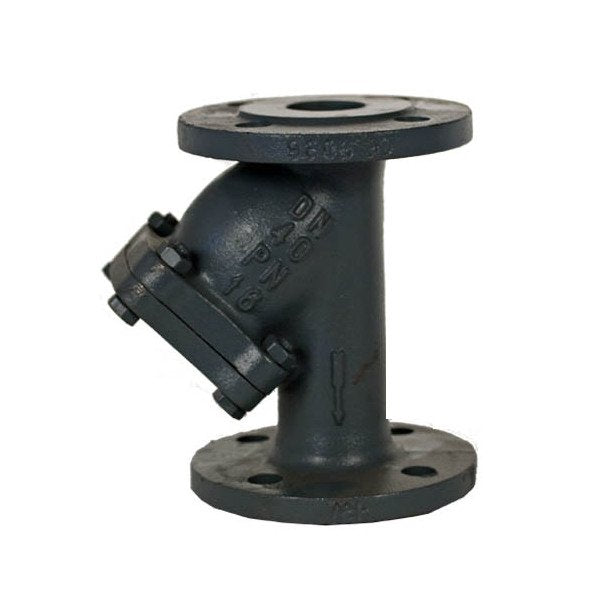

The DIN Cast Steel Y-Strainer PN 40 is engineered for precision in fluid control systems. Constructed with GSG25N2 Cast Steel body and AISI 304 Stainless Steel strainer, this Y-strainer ensures durability and efficient filtration. Compliant with DIN standards for face to face and flanges, it offers reliable performance in industrial applications, providing a flow size of 032. With a sturdy build and optimal dimensions, it is ideal for maintaining system integrity and preventing clogs. Invest in this robust Y-strainer for seamless operations and long-term reliability.

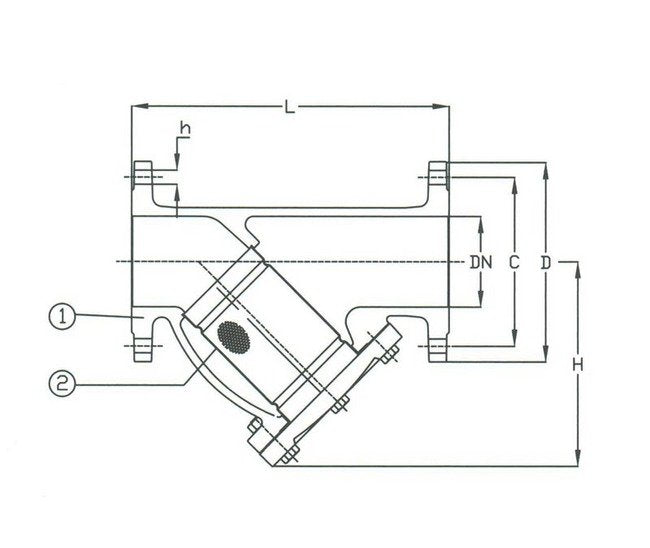

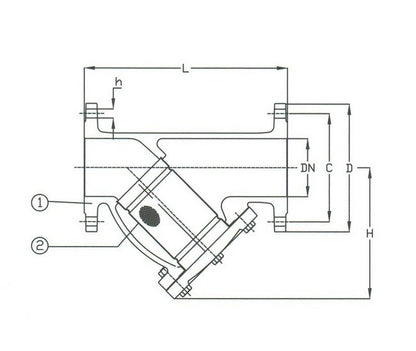

Product Specifications

Specifications Body Material

Cast Steel

Specifications C

100 mm

Specifications Connection

Flanged Drilled

Specifications D

140 mm

Specifications H

90 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

180 mm

Specifications Number Of Holes

Specifications Size

032

Specifications T

18 mm

Specifications Weight

8.0 kg

DIN Cast Steel Y-Strainer PN 40
