DIN Check Valve - PN 16 Wafer Style Long Valve, 350 Size
DIN Check Valve - PN 16 Wafer Style Long Valve, 350 Size
SKU:VAL-f8fd43
High-performance DIN Check Valve for industrial applications, PN 16, Carbon Steel body with Stainless Steel components. Size: 350.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
DIN Check Valve - PN 16 Wafer Style Long Valve, 350 Size
$799.99
Quantity: 1
Claim Your Seller Account
DIN Check Valve - PN 16 Wafer Style Long Valve, 350 Size
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Wafer Check Valve in Wafer Style Long design offers robust Carbon Steel body with Stainless Steel components for durability. Featuring Viton seat and Stainless Steel spring, it meets DIN2501-PN16 flange mounting standards. With a size of 350, hydraulic inspections rated at 16 for the body and 10 for the seat, this valve ensures reliable performance in industrial applications.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Carbon Steel

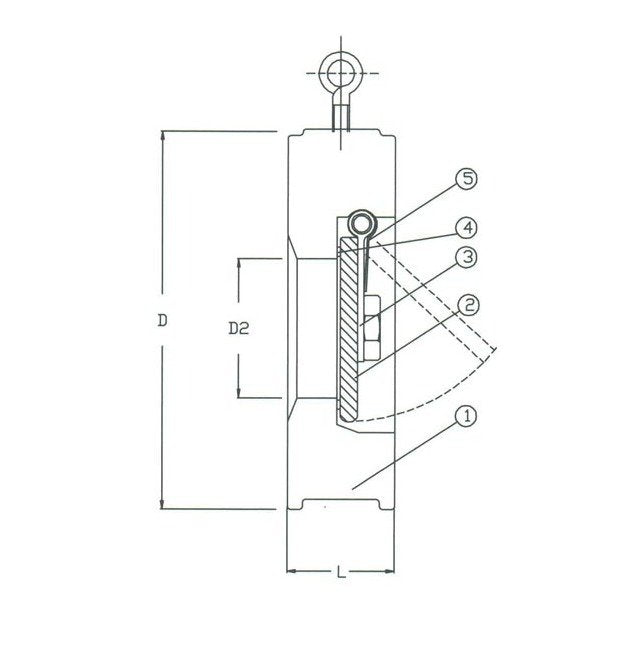

Specifications D
446 mm
Specifications D2
267 mm
Specifications Disc Material
Stainless Steel
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications Impaissa Code
755970
Specifications L
108 mm
Specifications Seat Material
Synthetic Material
Specifications Size
350
Specifications Stem Material
Stainless Steel
Specifications Weight
75.0 kg
