DIN Check Valve with Bronze Body and Stainless Steel Disc
DIN Check Valve with Bronze Body and Stainless Steel Disc
SKU:VAL-eb677f
Premium Wafer Disc Check Valve for industrial use, bronze body, stainless steel disc, DIN3202 K4 compliant
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
DIN Check Valve with Bronze Body and Stainless Steel Disc
$249.99
Quantity: 1
Claim Your Seller Account
DIN Check Valve with Bronze Body and Stainless Steel Disc
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wafer Disc Check Bronze Valve is a top-of-the-line valve designed for durability and reliability. Constructed with a bronze body and stainless steel disc, this valve ensures long-lasting performance. The stainless steel spring and spring stop ring provide added strength and corrosion resistance. Meeting DIN3202 K4 standards for face-to-face dimensions, this valve is ideal for industrial applications where quality and precision are paramount.
Ready to Grow Without Cash Flow Constraints?

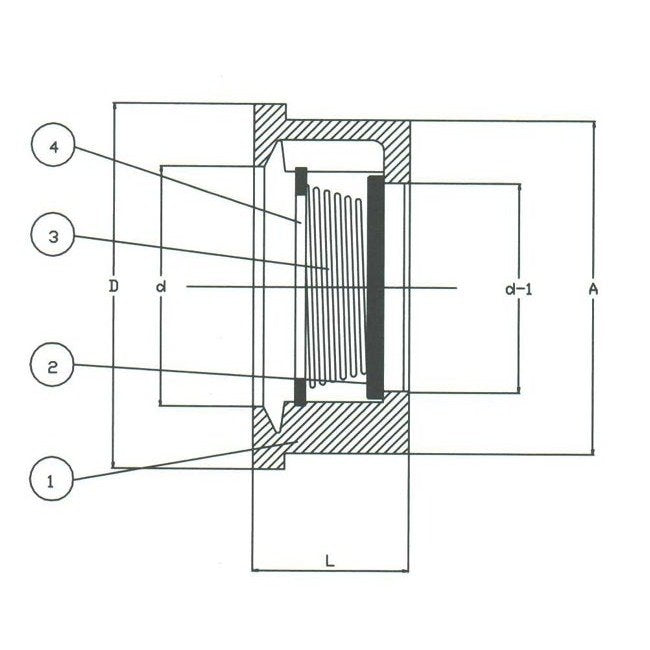

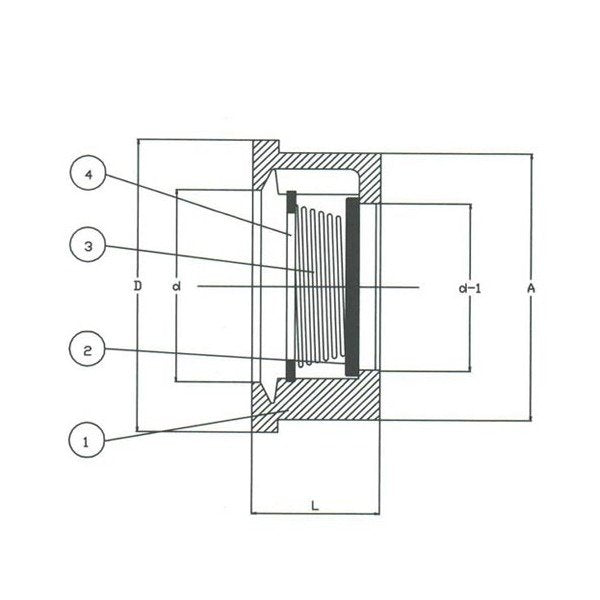

Product Specifications
Specifications A
147 mm
Specifications Actuators
Spring
Specifications Body Material
Bronze
Specifications D
162 mm
Specifications D1
95 mm
Specifications Disc Material
Stainless Steel
Specifications L
60 mm
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications Weight
2.8 kg
