DIN-compliant PN 40 Cast Steel Quick Closing Angle Valve
DIN-compliant PN 40 Cast Steel Quick Closing Angle Valve
SKU:VAL-4f91e6
Reliable PN 40 Cast Steel Angle Valve for high-pressure applications. DIN2501-PN40 compliant.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
DIN-compliant PN 40 Cast Steel Quick Closing Angle Valve
$499.99
Quantity: 1
Claim Your Seller Account
DIN-compliant PN 40 Cast Steel Quick Closing Angle Valve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 40 Cast Steel Quick Closing Angle Valve is designed for precision and durability. Featuring a Cast Steel body with Stainless Steel disc, seat, and stem, this valve ensures reliable performance under high pressures up to 40 bar. With spring-loaded shut-off pressure at 2.0 bar, it guarantees swift and secure shut-off. Compliant with DIN2501-PN40 standards, this valve is ideal for industrial applications requiring a robust and efficient angle valve.

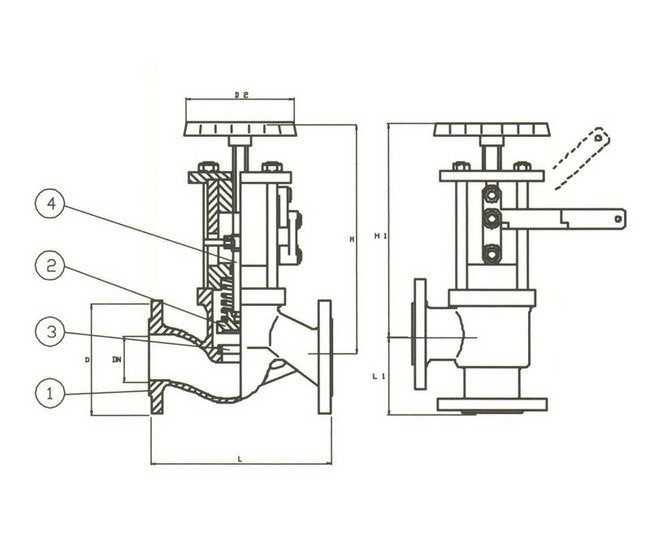

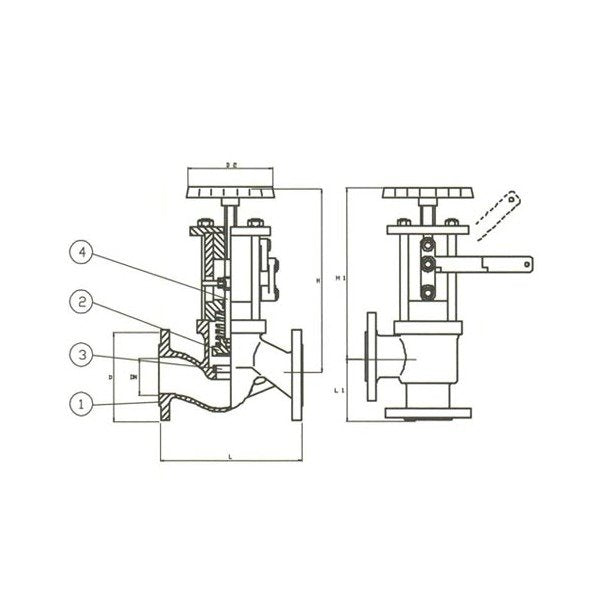

Product Specifications
Specifications Actuators
Lever
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
200 mm
Specifications D2
140 mm
Specifications Disc Material
Stainless Steel
Specifications H1
440 mm
Specifications L1
155 mm
Specifications Seat Material
Stainless Steel
Specifications Size
080
Specifications Spring Loaded Shut Off Pressure
2.0 bar
Specifications Stem Material
Stainless Steel
Specifications Weight
36.0 kg
Specifications Working Pressure
40 bar
