DIN DN400 EVFS Ductile Iron Butterfly Valve
DIN DN400 EVFS Ductile Iron Butterfly Valve
SKU:VAL-862dff
High-performance DN400 Butterfly Valve with Ductile Iron body, Aluminum Bronze shaft, and NBR liner material. Approved by ABS, DVGW, FM, and more.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
DIN DN400 EVFS Ductile Iron Butterfly Valve
$799.99
Quantity: 1
Claim Your Seller Account
DIN DN400 EVFS Ductile Iron Butterfly Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series EVFS Double Flanged Short Valve is a high-quality DIN Butterfly Valve designed for reliable performance in industrial settings. This valve features a Ductile Iron body material, Aluminum Bronze shaft, and NBR liner material, ensuring durability and resistance to corrosion. It is suitable for isolating and regulating functions, with a shut-off pressure of up to 10 bar. With approvals from ABS, DVGW, FM, and more, this valve meets stringent industry standards for safety and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

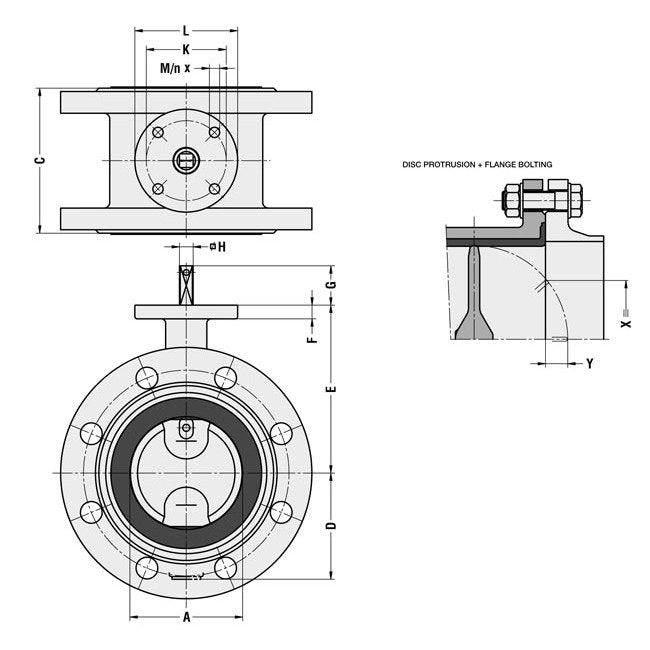

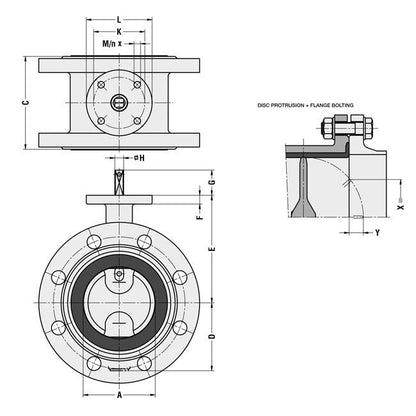

Specifications A
386 mm
Specifications Actuation Possibilities
Bare
Specifications Available Type Approvals
ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC
Specifications Body Material
Ductile Iron
Specifications C
216 mm
Specifications D
308 mm
Specifications E
363 mm
Specifications F
25 mm
Specifications Flange Connections
PN 10
Specifications G
50 mm
Specifications H Diameter
30 mm
Specifications Iso 5211
F14
Specifications K
140 mm
Specifications L
175 mm
Specifications Liner Material
Nitrile Butadiene Rubber (NBR)
Specifications M Diameter
17 mm
Specifications N Number Of Holes
4
Specifications Shaft Material
Aluminum Bronze
Specifications Size
DN400 - 16" | 400 mm
Specifications Standard
DIN
Specifications Stem Material
Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408
Specifications Valve Function
Isolating valve (on,off) and regulating valve | Regulating valve
Specifications Valve Shut Off Pressure
10 bar | 16 bar | 2.5 bar | 6 bar
Specifications Weight
130.0 kg
Specifications X
320 mm
Specifications Y
85 mm
