DIN Equal Non Return Valve w/ O-ring Body
DIN Equal Non Return Valve w/ O-ring Body
SKU:VAL-7fcc8a
Premium DIN Equal Non Return Valve for hydraulic flow control and durability. Offers Extra Light Duty to Heavy Duty pressure options. Compliant with DIN valve standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DIN Equal Non Return Valve w/ O-ring Body
$89.99
Quantity: 1
Claim Your Seller Account
DIN Equal Non Return Valve w/ O-ring Body
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Valve with O-ring Body is designed for reliable hydraulic flow control, offering multiple pressure options including Extra Light Duty, Heavy Duty, and Light Duty. With a Nominal Operating Pressure of 240 bar, this valve ensures secure fluid passage. Constructed from high-grade Stainless Steel, it features precise tube diameters, JIC 37° threading, and compact dimensions for seamless integration. Compliant with DIN valve standards, it guarantees durability and performance excellence in demanding industrial applications.

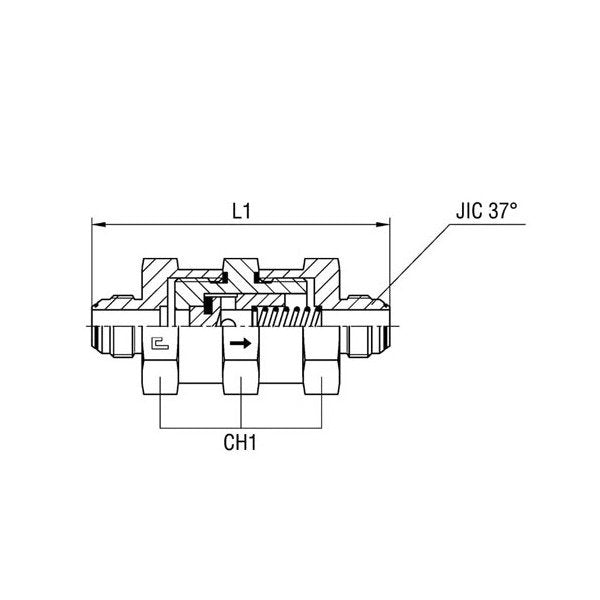

Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
25.5 mm
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
132.6 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 1/4 in
Category 6
Equal Non Return Valve
