DIN Globe Valve - Ductile Iron PN 16

Name: DIN Globe Valve - Ductile Iron PN 16
Brand: World Wide Metric, Inc.
SKU: VAL-b78f0b
Price: 99.99 USD
Availability: OutOfStock

SKU:VAL-b78f0b

Reliable and durable DIN Globe Valve for industrial applications, constructed with high-quality materials and compliant with DIN standards.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

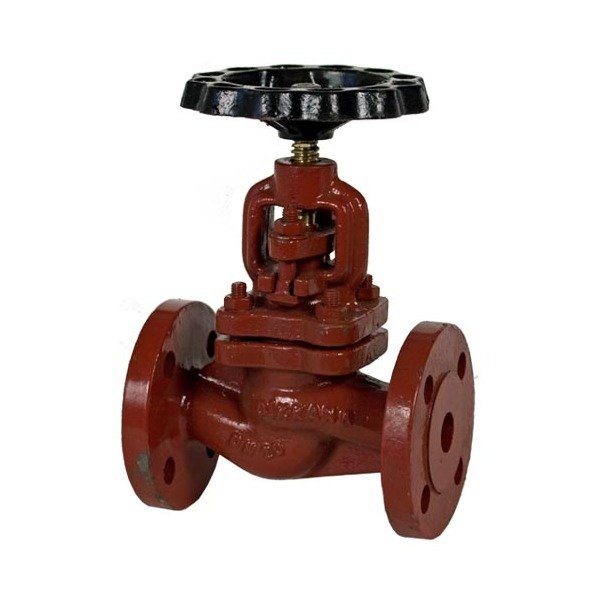

The PN 16 Ductile Iron Globe Regular Valve is designed for durability and reliable performance in industrial applications. Constructed with high-quality materials including Ductile Iron body, Brass stem, and Stainless Steel disc and seat, this valve ensures longevity and corrosion resistance. With compliance to DIN standards, ISO5752 Series 1, and Flanges according to DIN2501-PN16, this valve meets the stringent requirements of institutional procurement. Suitable for a range of hydraulic systems, the valve features a Handwheel actuator for easy operation.

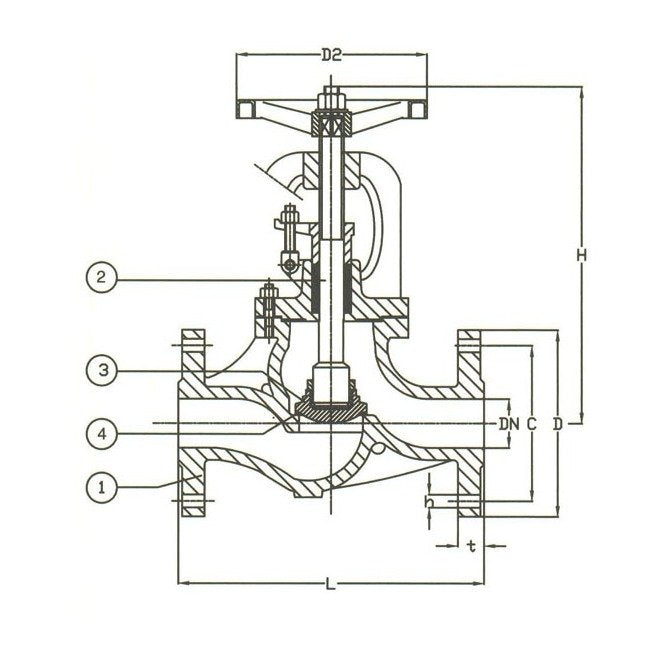

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

65 mm

Specifications Connection

Flanged Drilled

Specifications D

95 mm

Specifications D2

100 mm

Specifications Disc Material

Stainless Steel

Specifications H

160 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755401

Specifications L

130 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

015

Specifications Stem Material

Brass

Specifications T

14 mm

Specifications Weight

3.80 kg

DIN Globe Valve - Ductile Iron PN 16
