DIN Hydraulic Check Valve - Equal Non Return Needle Valve
DIN Hydraulic Check Valve - Equal Non Return Needle Valve
SKU:VAL-e67786
Durable DIN Hydraulic Check Valve, handles up to 350 bar. Compliant with Federal/DoD standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
DIN Hydraulic Check Valve - Equal Non Return Needle Valve
$59.99
Quantity: 1
Claim Your Seller Account
DIN Hydraulic Check Valve - Equal Non Return Needle Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Needle Valve with O-ring Body is a superior solution for hydraulic systems, offering exceptional pressure handling capabilities up to 350 bar. Crafted from durable stainless steel, this valve ensures reliability in a range of duty levels. With precise tube diameters and JIC 37° threading, this valve guarantees secure connections and smooth operations. Compliant with Federal/DoD procurement standards and suitable for various industry certifications, this valve is a top choice for institutional buyers seeking quality and performance.

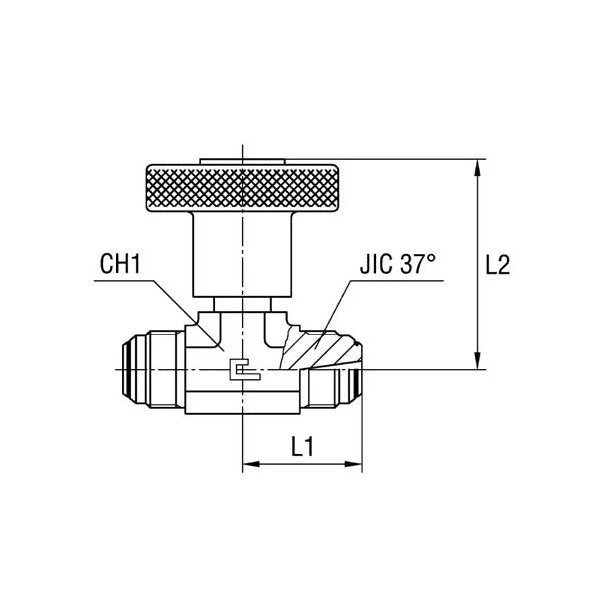

Product Specifications
Specifications Ch1
19.0 mm
Specifications Jic 37 Thread
7/16-20
Specifications L1
23.0 mm
Specifications L2
50.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
6 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/4 in
Category 6
Equal Non Return Needle Valve
