DIN Hydraulic Check Valve - Equal Non Return Needle Valve with O-ring Body
DIN Hydraulic Check Valve - Equal Non Return Needle Valve with O-ring Body
SKU:VAL-6d1bb5
High-performance Equal Non Return Needle Valve for precise hydraulic pressure regulation. Durable Stainless Steel construction with multiple Pressure options.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
DIN Hydraulic Check Valve - Equal Non Return Needle Valve with O-ring Body
$69.99
Quantity: 1
Claim Your Seller Account
DIN Hydraulic Check Valve - Equal Non Return Needle Valve with O-ring Body
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Needle Valve with O-ring Body is designed for precise pressure regulation in hydraulic systems. It offers flexibility with Pressure options (Extra Light Duty, Heavy Duty, Light Duty) and a Nominal Operating Pressure of 350 bar. Crafted from durable Stainless Steel, it ensures longevity and reliability. With a M-Tube Diameter of 10 mm and a W-Tube Diameter of 3/8 in, this valve guarantees efficient performance. Ideal for DIN Valve applications, it meets stringent industry standards for quality and performance.

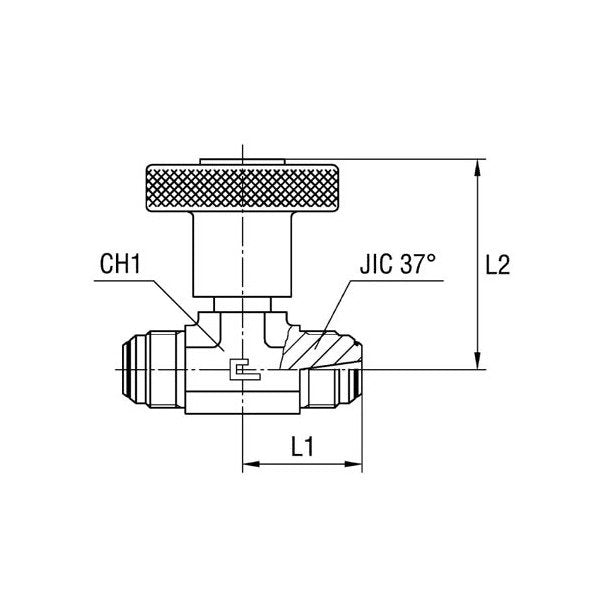

Product Specifications
Specifications Ch1
19.0 mm
Specifications Jic 37 Thread
9/16-18
Specifications L1
27.0 mm
Specifications L2
50.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
10 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/8 in
Category 6
Equal Non Return Needle Valve
