DIN Hydraulic Check Valve - Equal Non Return Valve
DIN Hydraulic Check Valve - Equal Non Return Valve
SKU:VAL-4f8bc2
Reliable DIN Hydraulic Check Valve for industrial applications, with 350 bar pressure capacity and durable carbon steel construction.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DIN Hydraulic Check Valve - Equal Non Return Valve
$49.99
Quantity: 1
Claim Your Seller Account
DIN Hydraulic Check Valve - Equal Non Return Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Valve - Standard Body is a high-quality hydraulic check valve designed to withstand pressures ranging from extra light duty to heavy duty, making it suitable for a variety of industrial applications. With a nominal operating pressure of 350 bar and constructed from durable carbon steel, this valve ensures reliable performance and longevity. The valve features tube diameters of 18mm or 20mm for M-tube and 3/4 inch for W-tube, along with a JIC 37° thread of 1 1/16-12, meeting stringent industry standards for precision and efficiency.
Product Specifications

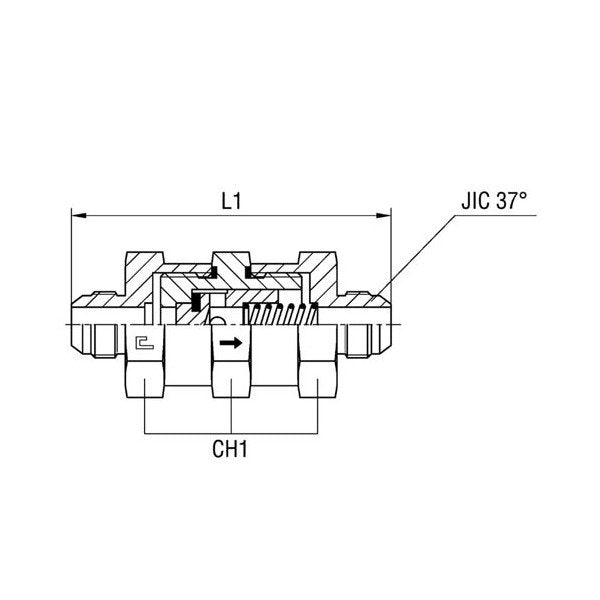

Specifications Ch1
50 mm
Specifications Diameter Pass
14.5 mm
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
109.8 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/4 in
Category 6
Equal Non Return Valve
