DIN Hydraulic Check Valve - Male Stud Non Return Valve UNF/UN-2A
DIN Hydraulic Check Valve - Male Stud Non Return Valve UNF/UN-2A
SKU:VAL-721e2c
High-quality DIN Hydraulic Check Valve for precise flow control in hydraulic systems. Ideal for extra light, heavy, and light duty applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DIN Hydraulic Check Valve - Male Stud Non Return Valve UNF/UN-2A
$89.99
Quantity: 1
Claim Your Seller Account
DIN Hydraulic Check Valve - Male Stud Non Return Valve UNF/UN-2A
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Hydraulic Check Valve - Male Stud Non Return Valve UNF/UN-2A is designed for extra light, heavy and light duty applications with a nominal operating pressure of 240 bar. Constructed from high-grade stainless steel, this valve features precise measurements including tube diameters of 30mm and 32mm, thread size of 1 5/8-12, and a pass diameter of 25.5mm. This valve ensures reliable flow control and is ideal for hydraulic systems in various industrial settings.

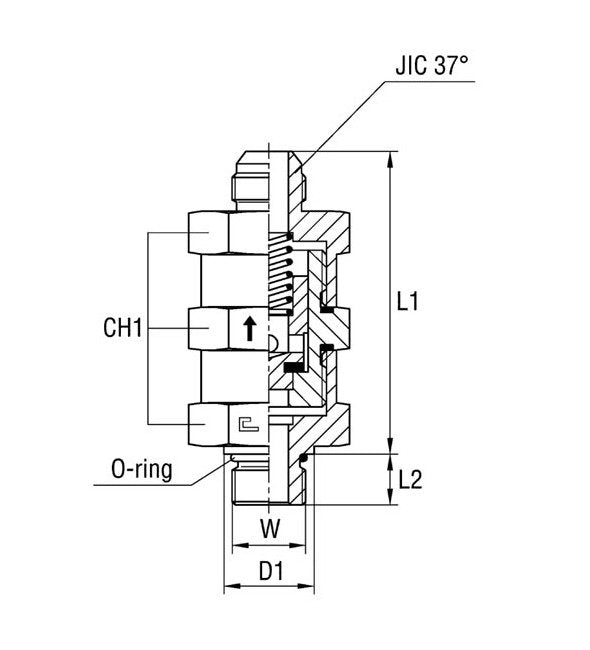

Product Specifications
Specifications Ch1
70 mm
Specifications D1
49.8 mm
Specifications Diameter Pass
25.5 mm
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
108.3 mm
Specifications L2
15.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 5/8-12
Specifications W Tube Diameter
1 1/4 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
