DIN Hydraulic Check Valve with Elastomer Seal Thread BSP Parallel - Equipped B3 Ring

Name: DIN Hydraulic Check Valve with Elastomer Seal Thread BSP Parallel - Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: VAL-cda7c2
Price: 29.99 USD
Availability: OutOfStock

SKU:VAL-cda7c2

Reliable DIN Hydraulic Check Valve for hydraulic systems with 250 bar pressure and durable stainless steel construction.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN Hydraulic Check Valve with Elastomer Seal Thread BSP Parallel - Equipped B3 Ring is designed for reliable performance in hydraulic systems. With a nominal operating pressure of 250 bar and light-duty pressure handling capabilities, this stainless steel valve ensures durability and optimum functionality. Its male stud configuration and elastomer seal guarantee secure connections and prevent backflow, meeting stringent industry standards for hydraulic applications.

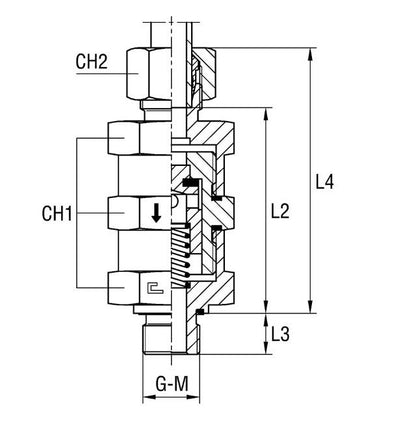

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

27 mm

Specifications Diameter Pass

11 mm

Specifications G Thread Size

1/2

Specifications L2

65 mm

Specifications L3

14.0 mm

Specifications L4

80 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

15.0 mm

Category 6

Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel

DIN Hydraulic Check Valve with Elastomer Seal Thread BSP Parallel - Equipped B3 Ring
