DIN Hydraulic Check Valve with Male Stud and Elastomer Seal
DIN Hydraulic Check Valve with Male Stud and Elastomer Seal
SKU:VAL-72ee1c
Reliable DIN Hydraulic Check Valve for precision hydraulic flow control in industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
DIN Hydraulic Check Valve with Male Stud and Elastomer Seal
$39.99
Quantity: 1
Claim Your Seller Account
DIN Hydraulic Check Valve with Male Stud and Elastomer Seal
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Hydraulic Check Valve with Male Stud and Elastomer Seal is designed for various pressure requirements including Extra Light Duty, Heavy Duty, and Light Duty applications with a nominal operating pressure of 350 bar. Constructed with high-quality stainless steel material, this valve features M Tube Diameter options of 18mm or 20mm, W Tube Diameter of 3/4 in, G Thread Size of 3/4, and precise dimensions for effective hydraulic flow control. Its Male Stud design with O-ring Body ensures secure sealing and reliability in hydraulic systems. Ideal for industrial and institutional use, this valve guarantees superior performance and durability.

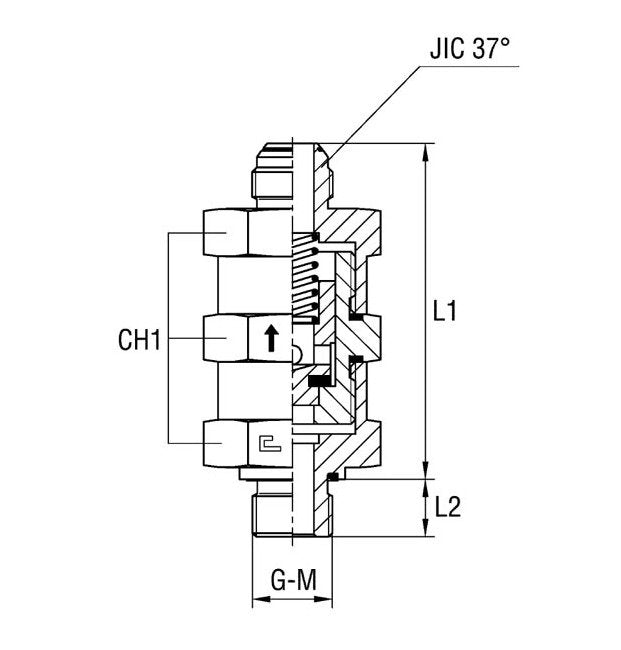

Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
14.5 mm
Specifications G Thread Size
3/4
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
90.9 mm
Specifications L2
16.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/4 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
