DIN Hydraulic Check Valve with Male Stud BSP Parallel Seal

Name: DIN Hydraulic Check Valve with Male Stud BSP Parallel Seal
Brand: World Wide Metric, Inc.
SKU: VAL-4b7c7e
Price: 39.99 USD
Availability: OutOfStock

SKU:VAL-4b7c7e

Reliable DIN Hydraulic Check Valve for light-duty hydraulic systems, nominal pressure 250 bar, stainless steel construction

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

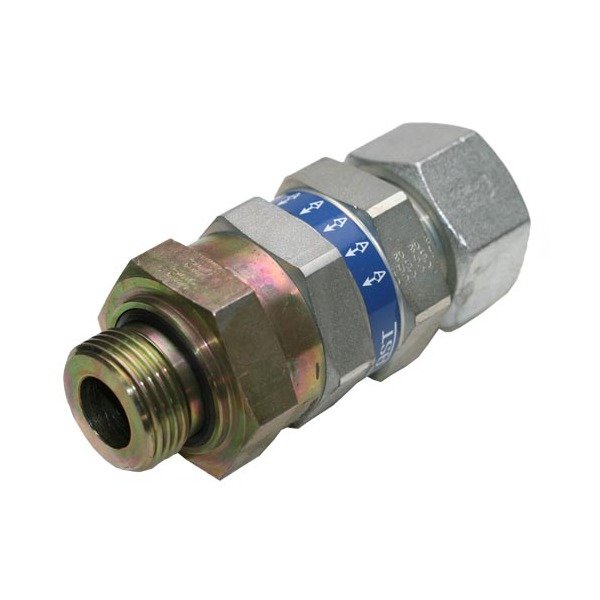

The Male Stud Non Return Valve with Elastomer Seal is designed for light-duty applications with a Nominal Operating Pressure of 250 bar. Featuring a G-Thread Size of 1/4 and a durable Stainless Steel construction, this valve ensures reliable performance. With a Tube Diameter of 8.0mm and compact dimensions, it fits seamlessly in hydraulic systems, offering a Diameter Pass. of 4mm for efficient flow control. Compliant with DIN standards, this valve is ideal for industrial and institutional hydraulic applications.

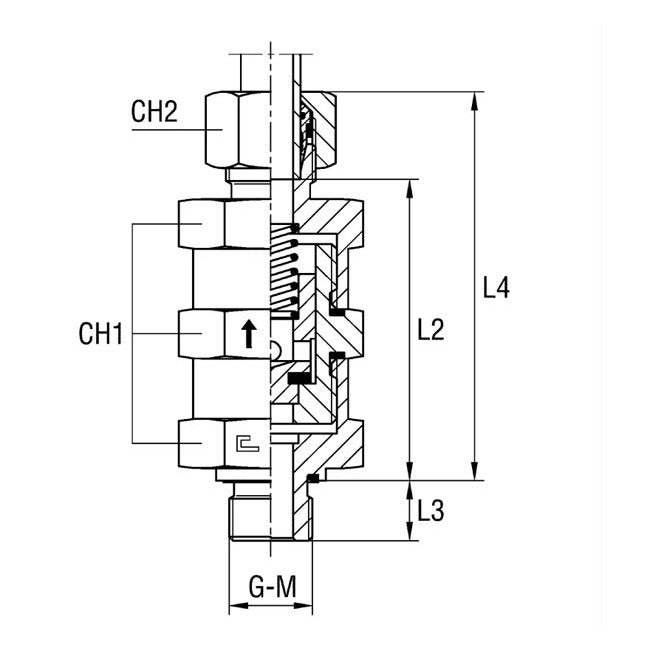

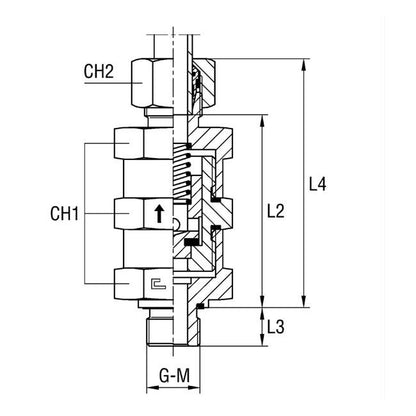

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

17.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/4

Specifications L2

53 mm

Specifications L3

12.0 mm

Specifications L4

67.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

8.0 mm

Category 6

Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
