DIN Hydraulic Check Valve with Male Stud & Elastomer Seal
DIN Hydraulic Check Valve with Male Stud & Elastomer Seal
SKU:VAL-e523ed
Durable DIN Hydraulic Check Valve for light duty applications, 100 bar max pressure, stainless steel construction.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
DIN Hydraulic Check Valve with Male Stud & Elastomer Seal
$39.99
Quantity: 1
Claim Your Seller Account
DIN Hydraulic Check Valve with Male Stud & Elastomer Seal
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

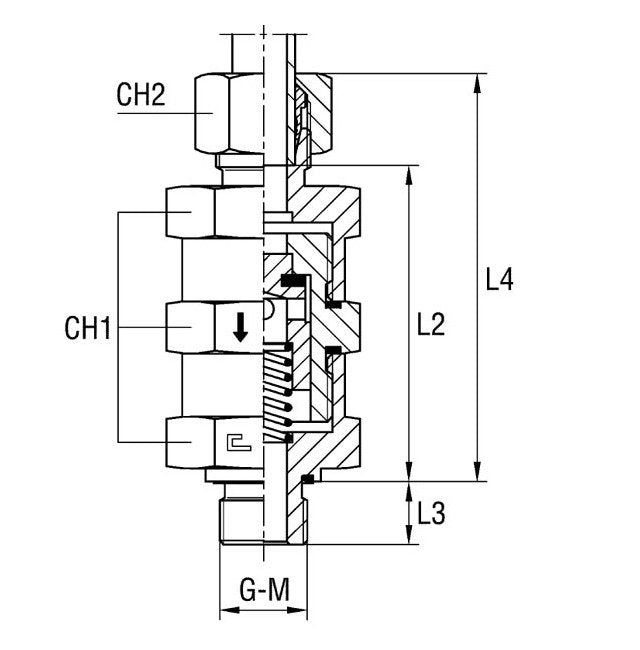

The Male Stud Non Return Valve with Elastomer Seal is a durable hydraulic check valve suitable for light duty applications. Operating at a nominal pressure of 100 bar, this valve features a stainless steel construction ensuring reliability and longevity. With a tube diameter of 42.0mm and precise M-thread size of 48x2, it offers secure parallel sealing. The valve, equipped with a B3 ring, has dimensions of L2: 92mm, L3: 22.0mm, L4: 114.5mm, CH1: 70mm, CH2: 60mm, and a passage diameter of 29mm.
Product Specifications
Specifications Ch1
70 mm
Specifications Ch2
60 mm
Specifications Diameter Pass
29 mm
Specifications L2
92 mm
Specifications L3
22.0 mm
Specifications L4
114.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
48x2
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
42.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
