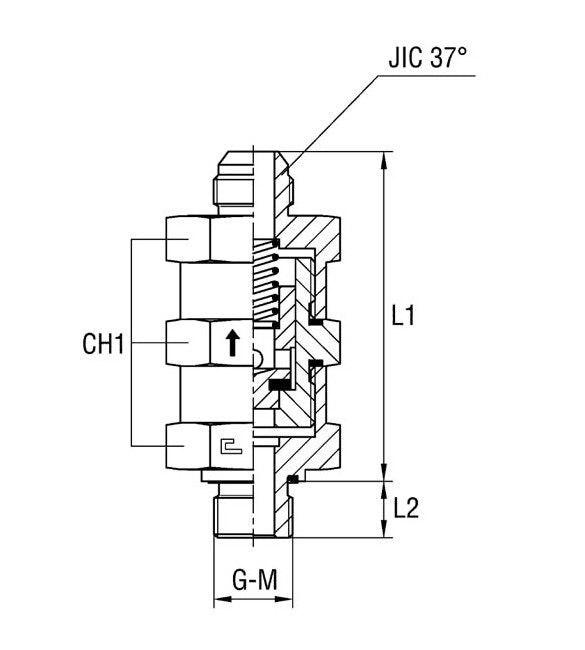

The Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel - Standard Body is a reliable hydraulic component designed for extra light-duty, heavy-duty, and light-duty applications with a nominal operating pressure of 350 bar. Crafted from stainless steel, this valve boasts a 8mm tube diameter (M), 5/16 inch tube diameter (W), 12x1.5 thread size (M), and a 4mm diameter pass. It features JIC 37° thread (1/2-20) and dimensions of L1: 64.0mm, L2: 8.0mm, CH1: 19.0mm, suitable for diverse hydraulic systems.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
64.0 mm
Specifications L2
8.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
12x1.5
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/16 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
