DIN Hydraulic Check Valve with Male Stud Non Return, Metric Parallel Thread
DIN Hydraulic Check Valve with Male Stud Non Return, Metric Parallel Thread
SKU:VAL-735f57
High-performance Male Stud Non Return Valve for hydraulic systems, 350 bar pressure, carbon steel construction
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DIN Hydraulic Check Valve with Male Stud Non Return, Metric Parallel Thread
$49.99
Quantity: 1
Claim Your Seller Account
DIN Hydraulic Check Valve with Male Stud Non Return, Metric Parallel Thread
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

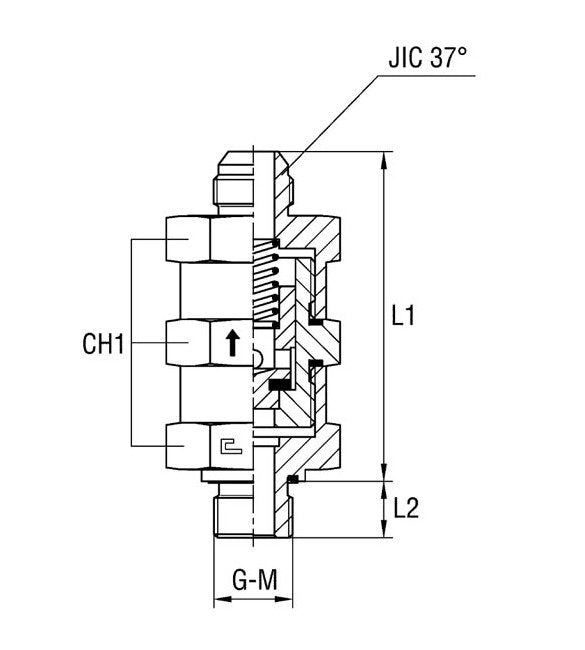

The Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel - Standard Body is a high-performance hydraulic check valve designed for precision and durability. With a nominal operating pressure of 350 bar, this valve offers reliable functionality in various duty levels including extra light, heavy, and light duty applications. Crafted from carbon steel, it features a 16x1.5 thread size, an 8mm diameter pass, and a tube diameter of 12mm (M) and 1/2 inch (W). Its compact design with precise dimensions such as L1 73.2mm, L2 12.0mm, and CH1 32mm ensures seamless integration in hydraulic systems.
Product Specifications
Specifications Ch1
32 mm
Specifications Diameter Pass
8 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
73.2 mm
Specifications L2
12.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
16x1.5
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/2 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
