DIN Hydraulic Male Stud Check Valve with Elastomer Seal - BSP Parallel Thread
DIN Hydraulic Male Stud Check Valve with Elastomer Seal - BSP Parallel Thread
SKU:VAL-4bd1f1
Reliable DIN Hydraulic Male Stud Check Valve with Elastomer Seal for various duty applications. Pressure rating: 290 bar.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
DIN Hydraulic Male Stud Check Valve with Elastomer Seal - BSP Parallel Thread
$59.99
Quantity: 1
Claim Your Seller Account
DIN Hydraulic Male Stud Check Valve with Elastomer Seal - BSP Parallel Thread
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN Hydraulic Male Stud Check Valve is designed for extra-light duty, heavy-duty, and light-duty applications with a nominal operating pressure of 290 bar. Crafted from carbon steel, this valve features a 25mm M-Tube Diameter, 1in W-Tube Diameter, and a 1in G-Thread Size. With compliance to industry standards, this valve ensures reliable performance and durability for hydraulic systems.

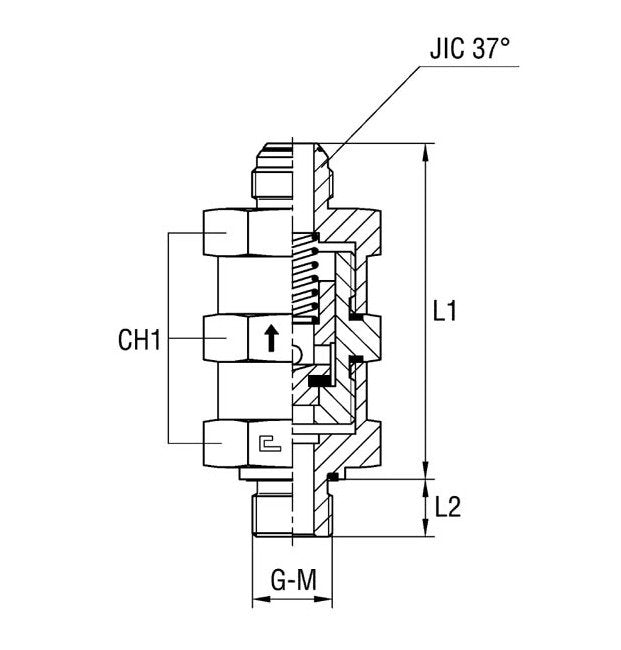

Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
18 mm
Specifications G Thread Size
1
Specifications Jic 37 Thread
1 5/16-12
Specifications L1
92.1 mm
Specifications L2
18.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
25 mm
Specifications Nominal Operating Pressure
290 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
