DIN Hydraulic Male Stud Non Return Valve - Thread Metric Parallel/Crbon Steel

Name: DIN Hydraulic Male Stud Non Return Valve - Thread Metric Parallel/Crbon Steel
Brand: World Wide Metric, Inc.
SKU: VAL-26253b
Price: 39.99 USD
Availability: OutOfStock

SKU:VAL-26253b

Male Stud Non Return Valve, 160 bar, DIN Standard, Carbon Steel Construction

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Non Return Valve with Elastomer Seal is designed for light-duty applications with a nominal operating pressure of 160 bar. Its carbon steel construction ensures durability. With a tube diameter of 18.0mm and M-Thread size of 22x1.5, this valve offers reliable performance. The valve body is meticulously crafted to meet DIN standards for hydraulic check valves, making it suitable for a wide range of industrial applications.

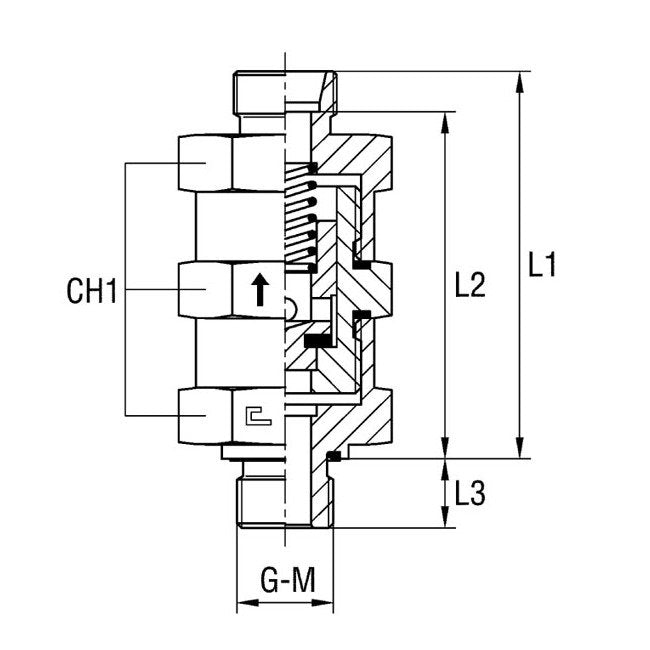

Product Specifications

Specifications Ch1

41 mm

Specifications Diameter Pass

11 mm

Specifications L1

72.0 mm

Specifications L2

64.5 mm

Specifications L3

14.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

18.0 mm

Category 6

Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
